All diagrams for this model

2014 Scooter T135SEC - T135SEC (55S5) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

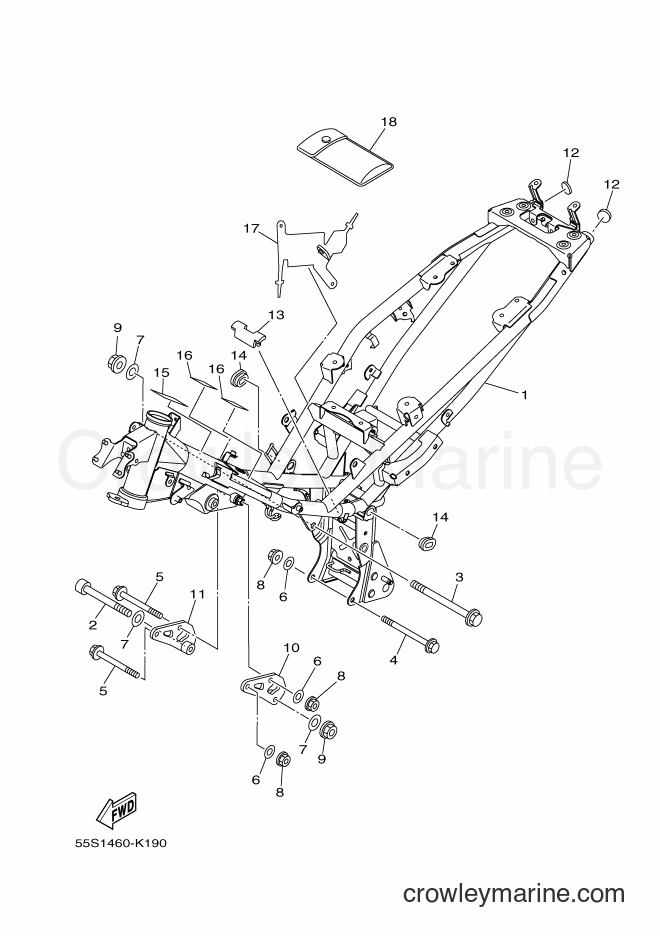

Yamaha Motors T135SEC (55S5) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
Socket Bolt
2
Yamaha Motors
Socket Bolt91317-10100-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$8.99
$7.64
You save $1.35
More details
3
Required: 1
BOLT, FLANGE
Price unavailable
4
Required: 1
BOLT, FLANGE
Price unavailable
5
Required: 2
BOLT, FLANGE
Price unavailable
Plain Washer
6
Yamaha Motors
Plain Washer90201-086P8-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Plain Washer
7
Yamaha Motors
Plain Washer90201-101J1-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
8
Required: 3
NUT
Price unavailable
Nut (1S72,5C81)
9
Yamaha Motors
Nut (1S72,5C81)90179-10805-00
Required: 2
NUT
Cross Ship
Leaves in 2-5 days
$2.75
$2.34
You save $0.41
More details
10
Required: 1
STAY, ENGINE 1
Price unavailable
11
Required: 1
STAY, ENGINE 2
Price unavailable
12
Required: 2
COVER 2
Price unavailable
13
Required: 1
DAMPER
Price unavailable
Grommet
14
Yamaha Motors
Grommet90480-01558-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
15
Required: 1
DAMPER 2
Price unavailable
16
Required: 2
DAMPER 3
Price unavailable
17
Required: 1
PROTECTOR
Price unavailable
18
Required: 1
TOOL KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
