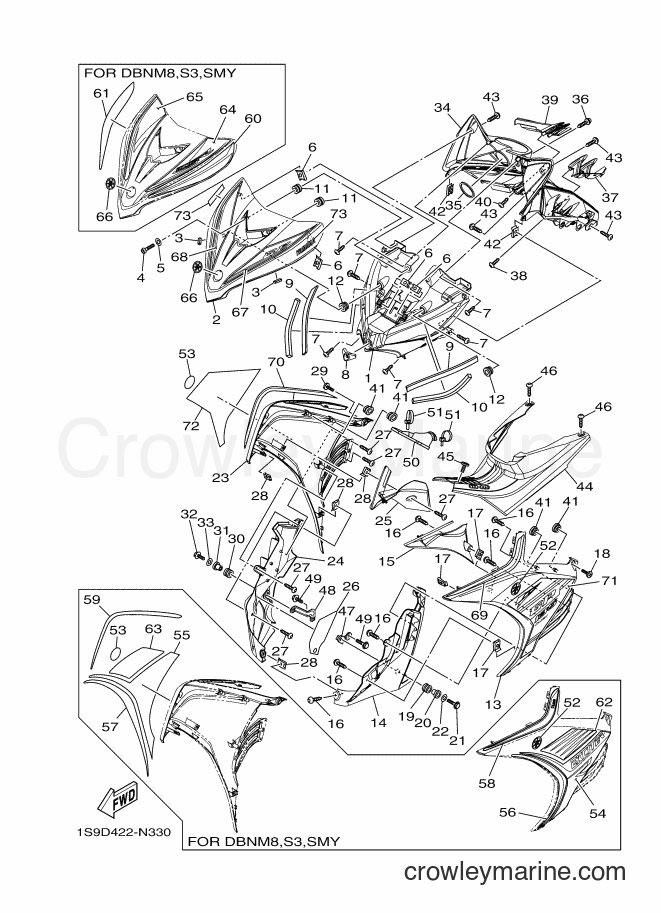

Yamaha Motors T135SEC (1S9D) [010] - LEG SHIELD
Change View:
1
Required: 1
PANEL, FRONT
Price unavailable
2
Required: 1
MOLE 1
Price unavailable
3
Required: 2
SEAL 3
Price unavailable
Screw (3GG)
4
Yamaha Motors
Screw (3GG)92017-06012-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
5
Required: 2
WASHER, PLATE
Price unavailable
6
Required: 4
NUT, SPRING
Price unavailable
7
Required: 6
SCREW, ROUND TAPPING
Price unavailable
8
Required: 1
GROMMET
Price unavailable
9
Required: 2
DAMPER, PLATE
Price unavailable
10
Required: 2
DAMPER, PLATE
Price unavailable
11
Required: 2
GROMMET
Price unavailable
12
Required: 2
GROMMET
Price unavailable
13
Required: 1
LEG SHIELD 1
Price unavailable
14
Required: 1
BODY, FRONT UNDER 1
Price unavailable
15
Required: 1
GUIDE, AIR 1
Price unavailable
16
Required: 6
SCREW, ROUND TAPPING
Price unavailable
17
Required: 3
NUT, SPRING
Price unavailable
ROUND HEAD SCREW
18
Yamaha Motors
ROUND HEAD SCREW90150-06021-00
Required: 1
SCREW, ROUND HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Grommet (3AK)
19
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
20
Required: 1
COLLAR
Price unavailable
Plate Washer
22
Yamaha Motors
Plate Washer90201-06557-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
23
Required: 1
LEG SHIELD 2
Price unavailable
24
Required: 1
BODY, FRONT UNDER 2
Price unavailable
25
Required: 1
GUIDE, AIR 2
Price unavailable
26
Required: 1
SEAL
Price unavailable
27
Required: 5
SCREW, ROUND TAPPING
Price unavailable
28
Required: 4
NUT, SPRING
Price unavailable
ROUND HEAD SCREW
29
Yamaha Motors
ROUND HEAD SCREW90150-06021-00
Required: 1
SCREW, ROUND HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Grommet (3AK)
30
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
31
Required: 1
COLLAR
Price unavailable
Plate Washer
33
Yamaha Motors
Plate Washer90201-06557-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
34
Required: 1
PANEL, INNER 1
Price unavailable
35
Required: 1
CAP, SWITCH
Price unavailable
36
Required: 1
SCREW, WITH WASHER
Price unavailable
37
Required: 1
FIN 1
Price unavailable
39
Required: 1
FIN 2
Price unavailable
41
Required: 4
GROMMET
Price unavailable
42
Required: 2
NUT, SPRING
Price unavailable
43
Required: 4
SCREW, ROUND TAPPING
Price unavailable
44
Required: 1
COVER 2
Price unavailable
ROUND HEAD SCREW
45
Yamaha Motors
ROUND HEAD SCREW90150-06021-00
Required: 1
SCREW, ROUND HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
46
Required: 2
SCREW, ROUND TAPPING
Price unavailable
47
Required: 1
STAY 1
Price unavailable
48
Required: 1
STAY 2
Price unavailable
50
Required: 1
PLATE
Price unavailable
Clamp
51
Yamaha Motors
Clamp90464-50800-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
52
Required: 1
TUNING FORK MARK
Price unavailable
53
Required: 1
TUNING FORK MARK
Price unavailable
54
Required: 1
GRAPHIC, 3
Price unavailable
55
Required: 1
GRAPHIC, 4
Price unavailable
56
Required: 1
GRAPHIC 7
Price unavailable
57
Required: 1
GRAPHIC, 8
Price unavailable
58
Required: 1
GRAPHIC, 15
Price unavailable
59
Required: 1
GRAPHIC, 16
Price unavailable
60
Required: 1
GRAPHIC 17
Price unavailable
61
Required: 1
GRAPHIC, 18
Price unavailable
62
Required: 1
GRAPHIC 21
Price unavailable
63
Required: 1
GRAPHIC 22
Price unavailable
64
Required: 1
GRAPHIC 19
Price unavailable
65
Required: 1
GRAPHIC 20
Price unavailable
66
Required: 1
TUNING FORK MARK
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
