2014 Scooter T135HC - T135HC (55P7) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

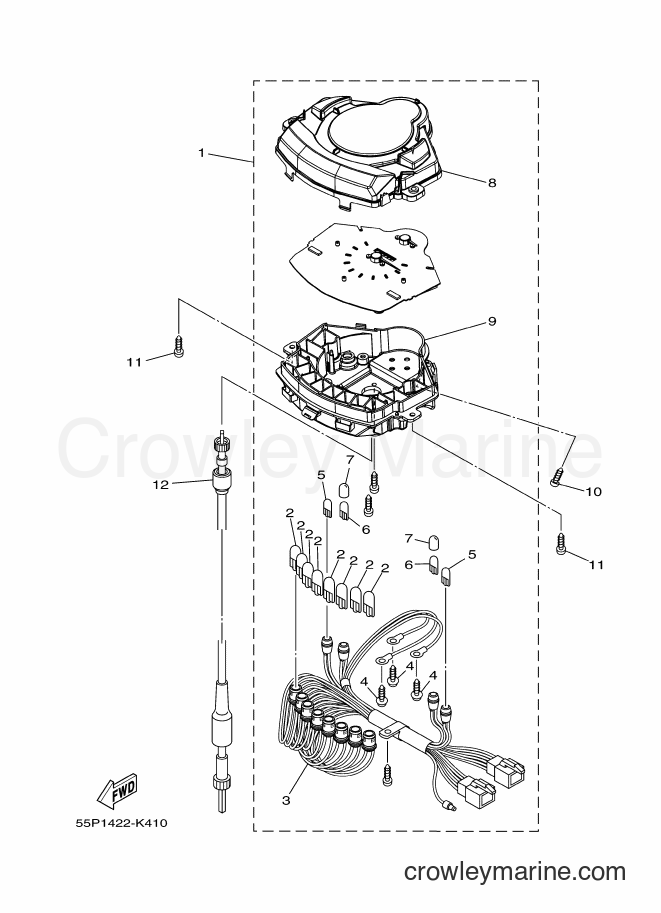

Yamaha Motors T135HC (55P7) [010] - METER
Change View:
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
2
Required: 8
. BULB (12V-1.7W T10)
Price unavailable
3
Required: 1
. SOCKET CORD ASSY
Price unavailable
Screw with Washer
4
Yamaha Motors
Screw with Washer90159-03102-00
Required: 3
. SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
Obsolete Yamaha Part
5
Yamaha Motors
Obsolete Yamaha Part42X-83517-00-00
Required: 2
. BULB (12V-3W)
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Obsolete Yamaha Part
6
Yamaha Motors
Obsolete Yamaha Part3FV-83517-00-00
Required: 2
. BULB (12V-1.7W T6.5)
Supersedes: 2GV-83517-00-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
7
Required: 2
. CAP, BULB
Price unavailable
8
Required: 1
. LENS, SPEEDOMETER
Price unavailable
9
Required: 1
. CASE, METER LOWER
Price unavailable
Tapping Screw
11
Yamaha Motors
Tapping Screw97707-50025-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
12
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
