2014 Scooter T115FLSE - T115FLSE (1FC4) [010] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

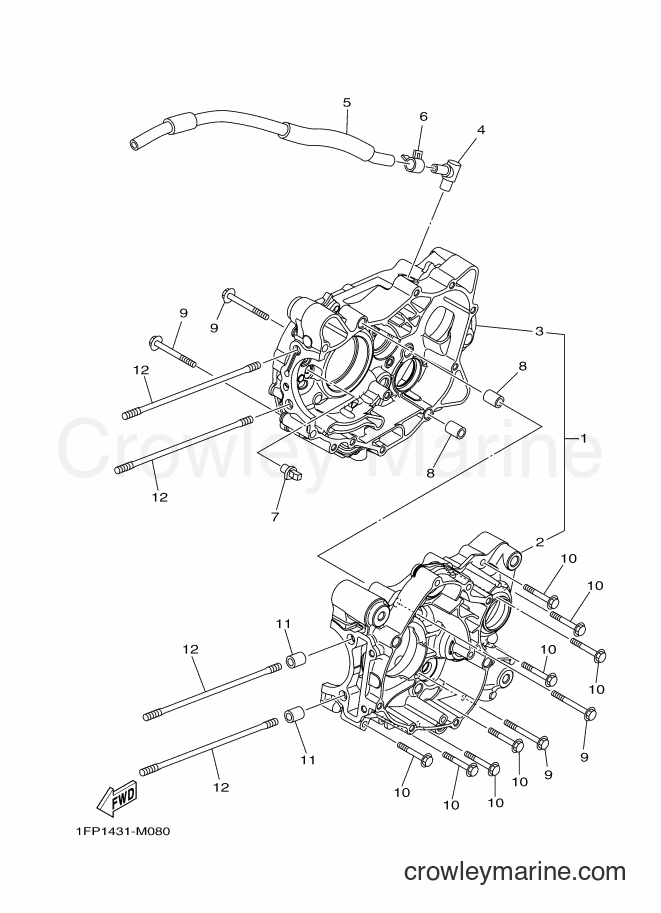

Yamaha Motors T115FLSE (1FC4) [010] - CRANKCASE
Change View:
1
Required: 1
CRANKCASE ASSY
Price unavailable
2
Required: 1
. CRANKCASE 1
Price unavailable
3
Required: 1
. CRANKCASE 2
Price unavailable
4
Required: 1
BREATHER
Price unavailable
5
Required: 1
PIPE, BREATHER 1
Price unavailable
6
Required: 1
CLIP
Price unavailable
7
Required: 1
NOZZLE 3
Price unavailable
8
Required: 2
PIN, DOWEL
Price unavailable
Flange Bolt
9
Yamaha Motors
Flange Bolt95022-06055-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.40
$1.19
You save $0.21
More details
Flange Bolt
10
Yamaha Motors
Flange Bolt95022-06040-00
Required: 8
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.70
$3.15
You save $0.56
More details
11
Required: 2
PIN, DOWEL
Price unavailable
12
Required: 4
BOLT, STUD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
