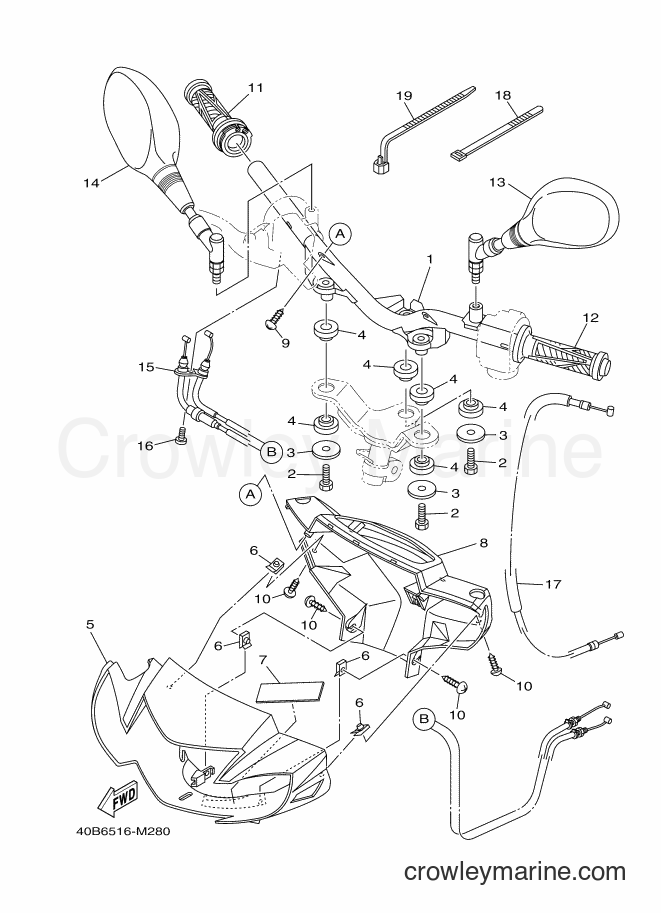

2014 Scooter T110C - T110C (40BB) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110C (40BB) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE
Price unavailable
97011-08016-00
2
Yamaha Motors
97011-08016-0097022-08016-00
Required: 3
BOLT
Supersedes: 97002-08016-00
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
3
Required: 3
WASHER, PLATE
Price unavailable
4
Required: 6
DAMPER
Price unavailable
5
Required: 1
COVER,HAND,UPPER 1
Price unavailable
6
Required: 4
NUT, SPRING
Price unavailable
7
Required: 1
DAMPER
Price unavailable
8
Required: 1
COVER, HANDLE UPPER 2
Price unavailable
Tapping Screw
9
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
Truss Screw
10
Yamaha Motors
Truss Screw97707-50012-00
Required: 4
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
11
Required: 1
GRIP ASSY
Price unavailable
12
Required: 1
GRIP
Price unavailable
13
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
14
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
15
Required: 1
THROTTLE CABLE ASSY
Price unavailable
Pan Head Screw
16
Yamaha Motors
Pan Head Screw98517-05012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98502-05012-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
17
Required: 1
CABLE, STARTER 1
Price unavailable
18
Required: 2
BAND, SWITCH CORD
Price unavailable
19
Required: 1
CLAMP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
