2014 Scooter T110C - T110C (40BB) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

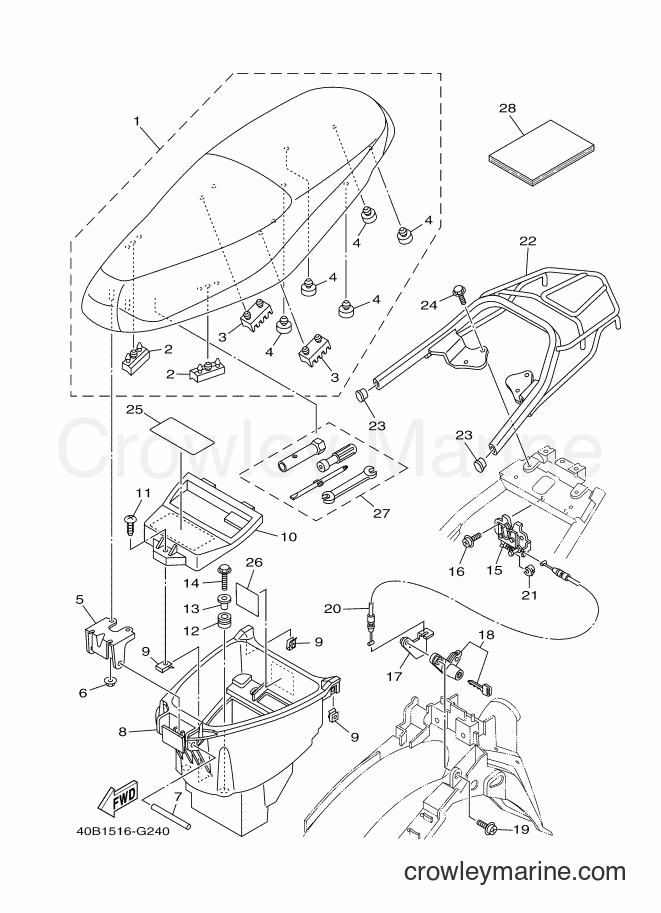

Yamaha Motors T110C (40BB) [010] - SEAT
Change View:
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 2
. DAMPER, SEAT
Price unavailable
3
Required: 2
. DAMPER, SEAT
Price unavailable
4
Required: 5
. PAD, SEAT
Price unavailable
5
Required: 1
HINGE, SEAT
Price unavailable
7
Required: 1
PIN, SEAT FITTING
Price unavailable
8
Required: 1
BOX 1
Price unavailable
9
Required: 3
NUT, SPRING
Price unavailable
10
Required: 1
LID 1
Price unavailable
Tapping Screw
11
Yamaha Motors
Tapping Screw97702-50016-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
12
Required: 4
GROMMET
Price unavailable
13
Required: 4
COLLAR
Price unavailable
Flange Bolt
14
Yamaha Motors
Flange Bolt95022-06025-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.90
$1.61
You save $0.28
More details
15
Required: 1
SEAT LOCK ASSY
Price unavailable
Screw
16
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.60
You save $0.50
More details
17
Required: 1
STAY, LOCK
Price unavailable
18
Required: 1
ROTOR SET
Price unavailable
19
Required: 1
SCREW, WITH WASHER
Price unavailable
20
Required: 1
CABLE, SEAT LOCK
Price unavailable
21
Required: 1
STOPPER
Price unavailable
22
Required: 1
HANDLE, SEAT
Price unavailable
23
Required: 2
GROMMET
Price unavailable
24
Required: 4
BOLT, FLANGE
Price unavailable
25
Required: 1
LABEL 1
Price unavailable
26
Required: 1
LABEL
Price unavailable
27
Required: 1
TOOL KIT
Price unavailable
28
Required: 1
MANUAL,OWNER'S
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
