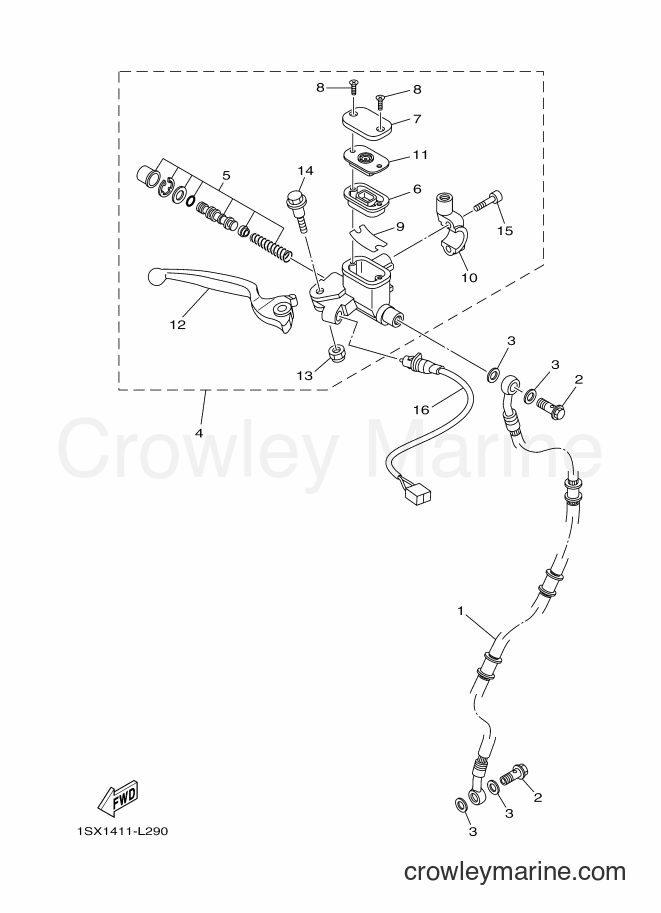

2014 Scooter T110C - T110C (40BB) [010] FRONT MASTER CYLINDER diagram
![Yamaha Motors T110C (40BB) [010] - FRONT MASTER CYLINDER](https://cdn.crowleymarine.com/yamaha/FOgCwFWP.png)
1
Required: 1
HOSE, BRAKE 1
Price unavailable
2
Required: 2
BOLT, UNION
Price unavailable
3
Required: 4
WASHER, PLATE
Price unavailable
4
Required: 1
MASTER CYLINDER ASSY
Price unavailable
5
Required: 1
. CYLINDER KIT, MASTER
Price unavailable
6
Required: 1
. DIAPHRAGM, RESERVOIR
Price unavailable
7
Required: 1
. CAP, RESERVOIR
Price unavailable
8
Required: 2
. SCREW
Price unavailable
9
Required: 1
. PLATE, RESERVOIR
Price unavailable
10
Required: 1
. BRACKET, MASTER CYLINDER
Price unavailable
11
Required: 1
. BUSH,DIAPHRAGM
Price unavailable
12
Required: 1
. LEVER 2
Price unavailable
13
Required: 1
. NUT, U
Price unavailable
14
Required: 1
. BOLT, LEVER
Price unavailable
-50%
15
Yamaha Motors
Bolt (4MY)91317-06025-00
Required: 2
. BOLT
Supersedes: 91312-06025-00
In stock
Only 1 remaining
$1.33
You save $1.33
16
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
