All diagrams for this model

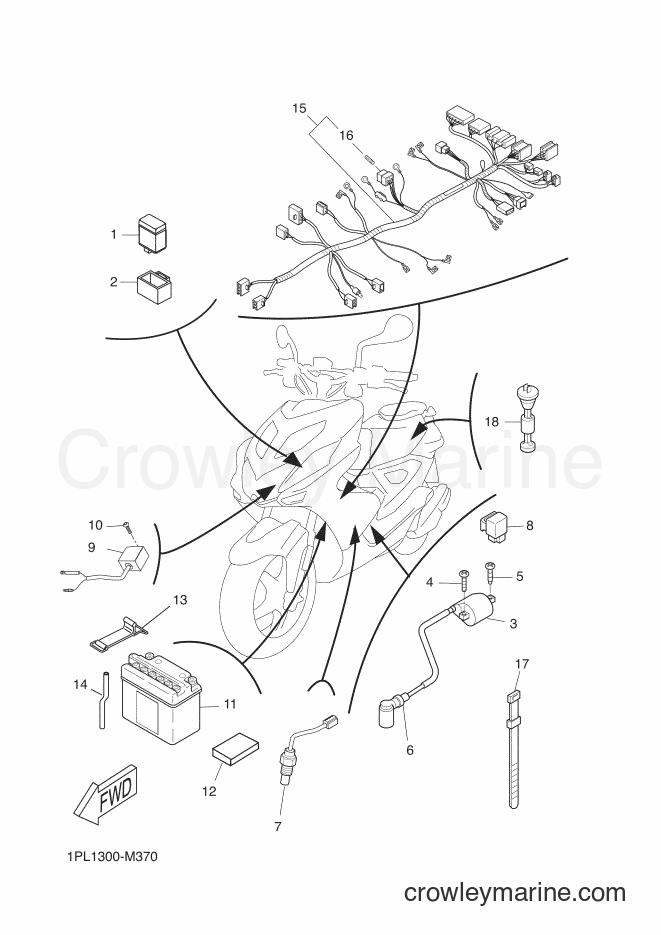

2014 Scooter NS50N - NS50N (1PL3) [030] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors NS50N (1PL3) [030] - ELECTRICAL 2
Change View:
C.D.I. UNIT ASSY
1
Yamaha Motors
C.D.I. UNIT ASSY5BM-H5540-20-00
Required: 1
C.D.I. UNIT ASSY
Cross Ship
Leaves in 2-5 days
$155.99
$132.59
You save $23.40
More details
2
Required: 1
BAND
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
Hexagon Screw
4
Yamaha Motors
Hexagon Screw90153-06034-00
Required: 1
SCREW, HEXAGON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
5
Required: 1
BOLT
Price unavailable
6
Required: 1
PLUG CAP ASSY
Price unavailable
7
Required: 1
SENDER, WATER
Price unavailable
29U-81950-93-00
8
Yamaha Motors
29U-81950-93-0027V-81940-02-00
Required: 1
STARTER RELAY ASSY
Cross Ship
Leaves in 2-5 days
$51.99
$44.19
You save $7.80
More details
9
Required: 1
UNIT, CONTROL
Price unavailable
Flange Bolt
10
Yamaha Motors
Flange Bolt95022-06016-00
Required: 1
BOLT, FLANGE
Supersedes: 9502L-06016-00
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
11
Required: 1
BATTERY ASSY
Price unavailable
12
Required: 1
DAMPER, LOCATING 1
Price unavailable
13
Required: 1
BAND, BATTERY
Price unavailable
14
Required: 1
PIPE, BREATHER
Price unavailable
15
Required: 1
WIRE HARNESS ASSY
Price unavailable
16
Required: 2
. FUSE (7.5A)
Price unavailable
Switch Cord Band
17
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 6
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Oil Level Gauge Assembly
18
Yamaha Motors
Oil Level Gauge Assembly53L-85720-02-00
Required: 1
OIL LEVEL GAUGE ASSY
Cross Ship
Leaves in 2-5 days
$34.99
$29.74
You save $5.25
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
