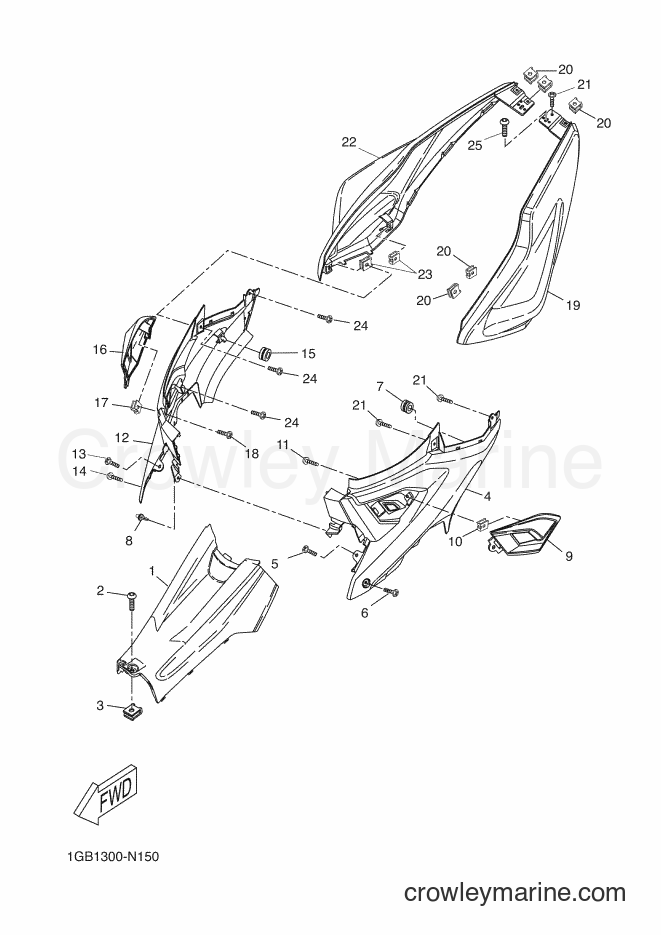

2014 Scooter NS50 - NS50 (1PH4) [010] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors NS50 (1PH4) [010] - SIDE COVER
Change View:
1
Required: 1
LID
Price unavailable
BOLT
2
Yamaha Motors
BOLT90111-05011-00
Required: 1
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
NUT SPRING
3
Yamaha Motors
NUT SPRING90183-05X04-00
Required: 1
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
4
Required: 1
COVER, SIDE 1
Price unavailable
5
Required: 1
SCREW, TAPPING
Price unavailable
BOLT
6
Yamaha Motors
BOLT90111-05018-00
Required: 1
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
7
Required: 1
GROMMET
Price unavailable
RIVET
8
Yamaha Motors
RIVET90269-06001-00
Required: 1
RIVET
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
9
Required: 1
GRILLE, SIDE COVER 1
Price unavailable
11
Required: 1
SCREW, TAPPING
Price unavailable
12
Required: 1
COVER, SIDE 2
Price unavailable
13
Required: 1
SCREW, TAPPING
Price unavailable
BOLT
14
Yamaha Motors
BOLT90111-05018-00
Required: 1
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
15
Required: 1
GROMMET
Price unavailable
16
Required: 1
GRILLE, SIDE COVER 2
Price unavailable
18
Required: 1
SCREW, TAPPING
Price unavailable
19
Required: 1
COVER, SIDE 3
Price unavailable
21
Required: 3
SCREW, TAPPING
Price unavailable
22
Required: 1
COVER, SIDE 4
Price unavailable
24
Required: 2
SCREW, TAPPING
Price unavailable
25
Required: 1
BOLT,HEX. SOCKET BUTTON
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
