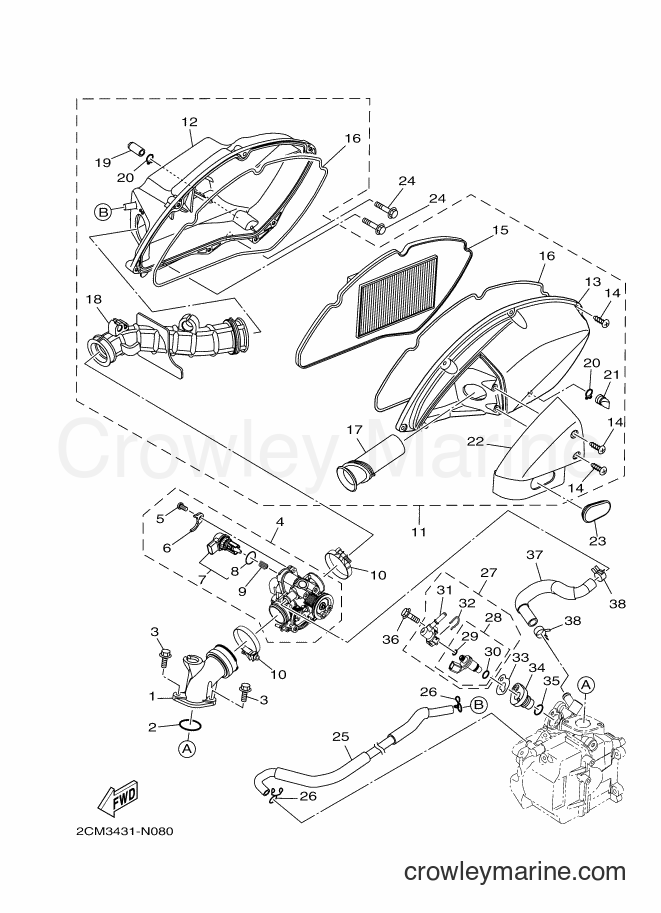

2014 Scooter MW125 - MW125 (2CM1) [010] INTAKE diagram
![Yamaha Motors MW125 (2CM1) [010] - INTAKE](https://cdn.crowleymarine.com/yamaha/aABvcFRh.png)
1
Required: 1
MANIFOLD
Price unavailable
$12.32
You save $2.17
$3.32
You save $0.58
4
Required: 1
THROTTLE BODY ASSY
Price unavailable
5
Yamaha Motors
Screw98517-06012-00
Required: 1
. SCREW, PAN HEAD
Supersedes: 98502-06012-00
$3.49
You save $0.62
$6.79
You save $1.20
7
Required: 1
. STEPPING MOTOR
Price unavailable
$6.37
You save $1.12
9
Required: 1
. SPRING, PLUNGER
Price unavailable
10
Required: 2
HOSE CLAMP ASSY
Price unavailable
11
Required: 1
AIR CLEANER ASSY.
Price unavailable
12
Required: 1
. CASE, AIR CLEANER 1
Price unavailable
13
Required: 1
. CAP, CLEANER CASE 1
Price unavailable
14
Yamaha Motors
Tapping Screw97707-50025-00
Required: 9
. SCREW, TAPPING
$8.07
You save $1.42
15
Required: 1
. ELEMENT, AIR CLEANER
Price unavailable
16
Required: 2
. SEAL
Price unavailable
17
Required: 1
. DUCT
Price unavailable
18
Required: 1
. JOINT, AIR CLEANER 1
Price unavailable
19
Required: 1
. PIPE, DRAIN
Price unavailable
20
Required: 2
. CLIP
Price unavailable
21
Required: 1
. PIPE, DRAIN 2
Price unavailable
22
Required: 1
. COVER 1
Price unavailable
23
Required: 1
PLUG
Price unavailable
$4.67
You save $0.82
25
Required: 1
PIPE, BREATHER 1
Price unavailable
$0.68
You save $0.12
27
Required: 1
INJECTOR ASSY
Price unavailable
28
Required: 1
. INJECTOR
Price unavailable
$4.67
You save $0.82
$5.94
You save $1.05
31
Required: 1
. PIPE
Price unavailable
$4.21
You save $0.74
33
Required: 1
GASKET
Price unavailable
34
Required: 1
ADAPTER
Price unavailable
35
Required: 1
O-RING
Price unavailable
$1.83
You save $0.32
37
Required: 1
HOSE, AIR
Price unavailable
38
Required: 2
CLIP
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
