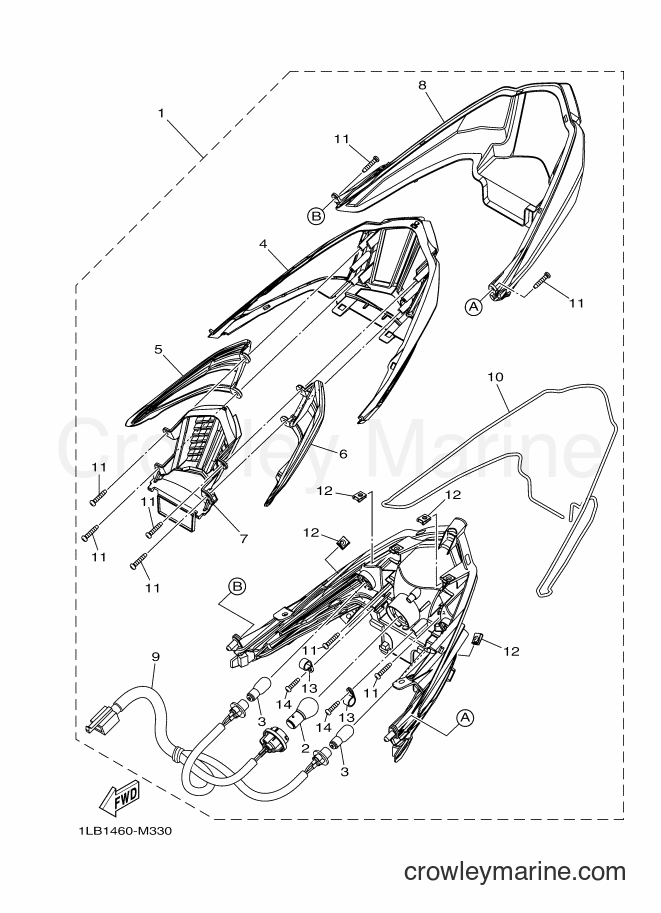

2014 Scooter AL125FC - AL125FC (1LBB) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL125FC (1LBB) [010] - TAILLIGHT
Change View:
1
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. BULB (12V-21/5W)
Price unavailable
3
Required: 2
. BULB (12V-10W) AMBER
Price unavailable
4
Required: 1
. COVER, TAILLIGHT
Price unavailable
5
Required: 1
. LENS, FLASHER 2
Price unavailable
6
Required: 1
. LENS, FLASHER
Price unavailable
7
Required: 1
. LENS, TAILLIGHT
Price unavailable
8
Required: 1
. LENS, LICENCE LIGHT
Price unavailable
9
Required: 1
. SOCKET CORD ASSY
Price unavailable
10
Required: 1
. GASKET, TAIL LENS
Price unavailable
Tapping Screw
11
Yamaha Motors
Tapping Screw97707-40616-00
Required: 8
. SCREW, TAPPING
Supersedes: 97702-40616-00
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
13
Required: 2
. CLAMP, CORD
Price unavailable
Tapping Screw
14
Yamaha Motors
Tapping Screw97780-40112-00
Required: 2
. SCREW, TAPPING
Supersedes: 97702-40612-00
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
