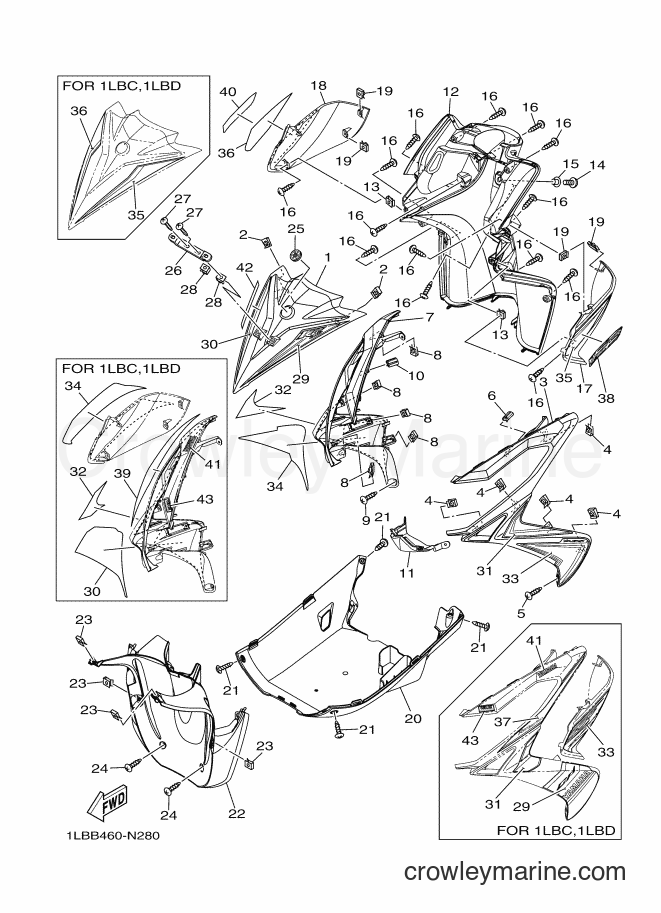

2014 Scooter AL125FC - AL125FC (1LBB) [010] LEG SHIELD diagram
![Yamaha Motors AL125FC (1LBB) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/Ig0e6DIr.png)
1
Required: 1
PANEL, FRONT
Price unavailable
1
Required: 1
PANEL, FRONT
Price unavailable
2
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
3
Required: 1
PANEL 1
Price unavailable
3
Required: 1
PANEL 1
Price unavailable
4
Yamaha Motors
Spring Nut90183-05042-00
Required: 5
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
5
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
6
Required: 1
CAP, RUBBER
Price unavailable
7
Required: 1
PANEL 2
Price unavailable
7
Required: 1
PANEL 2
Price unavailable
8
Yamaha Motors
Spring Nut90183-05042-00
Required: 5
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
9
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
10
Required: 1
CAP, RUBBER
Price unavailable
11
Required: 1
PANEL, FRONT 2
Price unavailable
11
Required: 1
PANEL, FRONT 2
Price unavailable
12
Required: 1
LEG SHIELD 2
Price unavailable
13
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
14
Yamaha Motors
BOLT (44D1)90111-06839-00
Required: 1
BOLT,HEX. SOCKET BUTTON
$0.42
You save $0.08
15
Required: 1
COLLAR
Price unavailable
16
Yamaha Motors
Truss Screw97707-50014-00
Required: 14
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
17
Required: 1
PANEL, INNER 1
Price unavailable
17
Required: 1
PANEL, INNER 1
Price unavailable
18
Required: 1
PANEL, INNER 2
Price unavailable
18
Required: 1
PANEL, INNER 2
Price unavailable
19
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
20
Required: 1
COVER, UNDER
Price unavailable
20
Required: 1
COVER, UNDER
Price unavailable
21
Yamaha Motors
Truss Screw97707-50014-00
Required: 4
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
22
Required: 1
FENDER, INNER
Price unavailable
23
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
24
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
25
Required: 1
EMBLEM
Price unavailable
25
Required: 1
EMBLEM
Price unavailable
26
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
26
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
27
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
28
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
29
Required: 1
GRAPHIC 1
Price unavailable
29
Required: 1
GRAPHIC 1
Price unavailable
30
Required: 1
GRAPHIC 2
Price unavailable
30
Required: 1
GRAPHIC 2
Price unavailable
31
Required: 1
GRAPHIC 3
Price unavailable
31
Required: 1
GRAPHIC 3
Price unavailable
32
Required: 1
GRAPHIC 4
Price unavailable
32
Required: 1
GRAPHIC 4
Price unavailable
33
Required: 1
GRAPHIC 5
Price unavailable
33
Required: 1
GRAPHIC 5
Price unavailable
34
Required: 1
GRAPHIC 6
Price unavailable
34
Required: 1
GRAPHIC 6
Price unavailable
35
Required: 1
GRAPHIC 1
Price unavailable
35
Required: 1
GRAPHIC 1
Price unavailable
36
Required: 1
GRAPHIC 2
Price unavailable
36
Required: 1
GRAPHIC 2
Price unavailable
37
Required: 1
GRAPHIC 9
Price unavailable
38
Required: 1
GRAPHIC 3
Price unavailable
39
Required: 1
GRAPHIC 10
Price unavailable
40
Required: 1
GRAPHIC 4
Price unavailable
41
Required: 2
EMBLEM, YAMAHA
Price unavailable
42
Required: 1
GRAPHIC 7
Price unavailable
43
Required: 2
GRAPHIC 7
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
