2014 Scooter AL125FC - AL125FC (1LBA) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

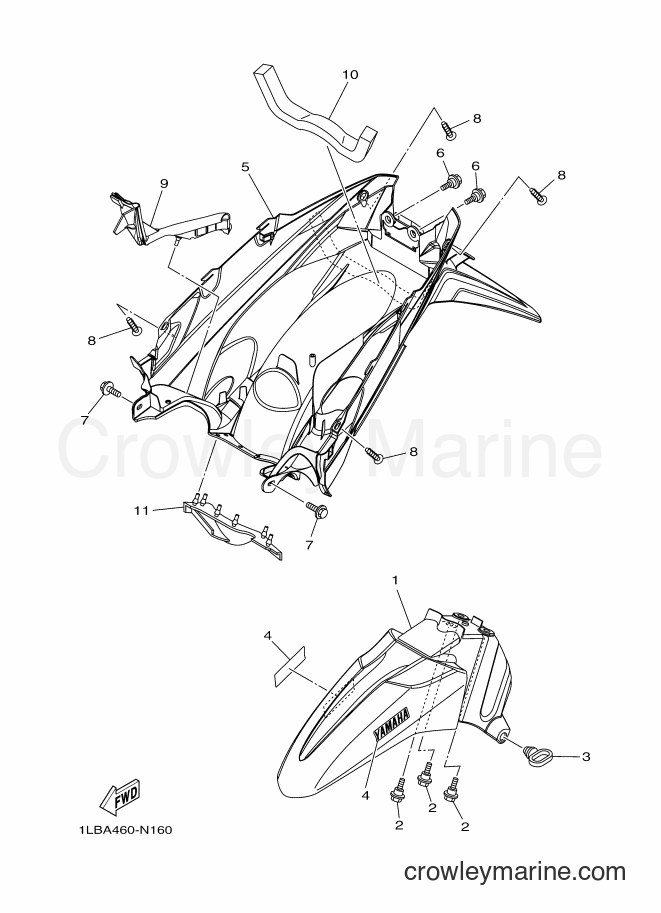

Yamaha Motors AL125FC (1LBA) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
BOLT
2
Yamaha Motors
BOLT90109-06887-00
Required: 3
BOLT
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
3
Required: 1
HOLDER, CABLE
Price unavailable
4
Required: 2
EMBLEM, YAMAHA
Price unavailable
5
Required: 1
FENDER, REAR
Price unavailable
BOLT
6
Yamaha Motors
BOLT90109-06887-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
Bolt with Washer
7
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Truss Screw
8
Yamaha Motors
Truss Screw97707-50014-00
Required: 4
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
9
Required: 1
PROTECTOR
Price unavailable
10
Required: 1
DAMPER, PLATE
Price unavailable
11
Required: 1
FLAP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
