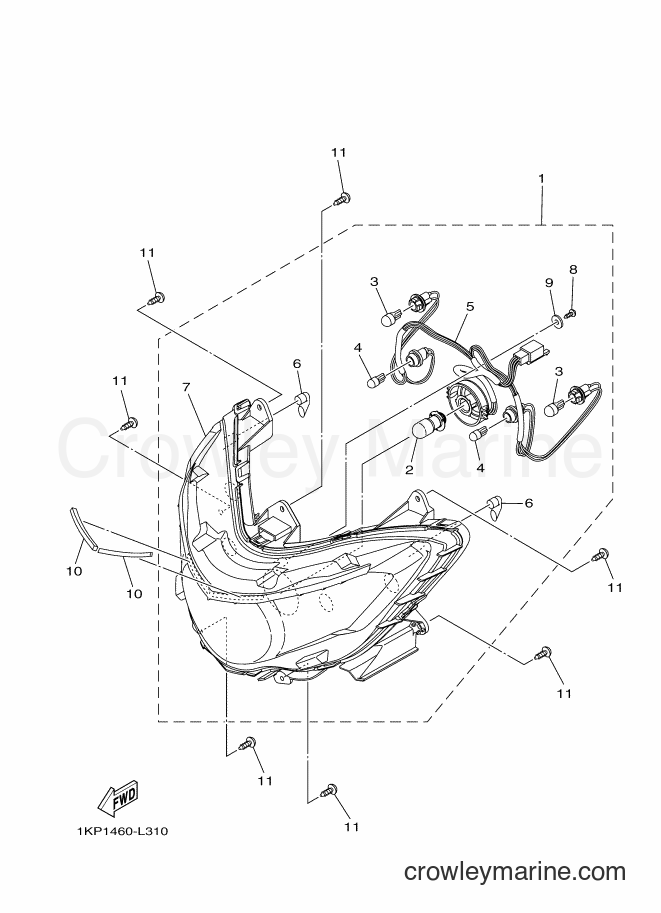

Yamaha Motors AL115FX (1KP4) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT ASSY
Price unavailable
2
Required: 1
. BULB (12V-32/32W)
Price unavailable
3
Required: 2
. BULB (12V-10W) AMBER
Price unavailable
4
Required: 2
. BULB (12V-3.4W)
Price unavailable
5
Required: 1
. CORD ASSY
Price unavailable
6
Required: 2
. CAP
Price unavailable
7
Required: 1
. HEADLIGHT UNIT ASSY
Price unavailable
8
Required: 1
. SCREW, SPECIAL
Price unavailable
9
Required: 1
. WASHER, SPECIAL
Price unavailable
10
Required: 2
DAMPER, PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
