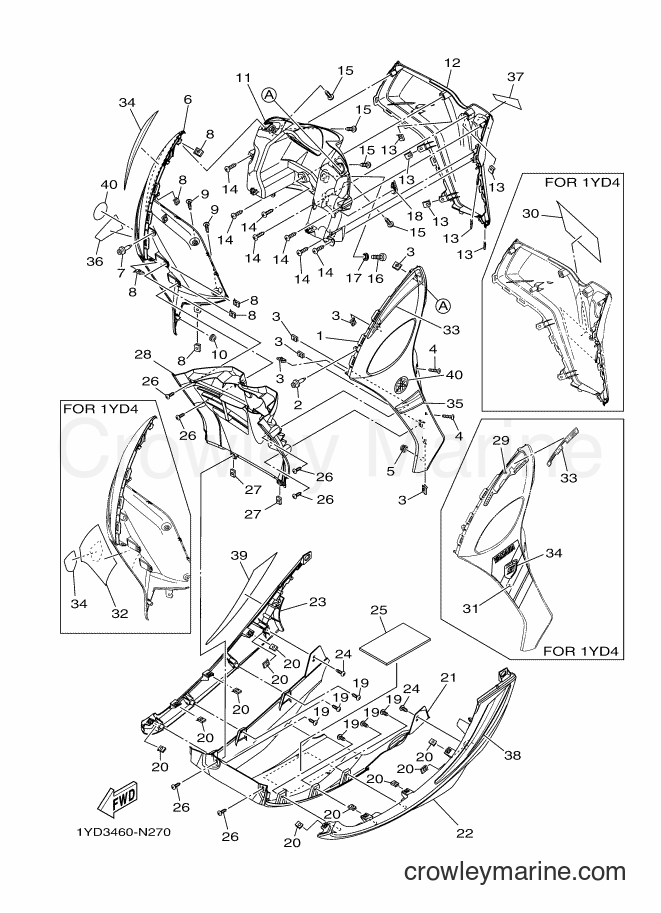

2014 Scooter AF115FC - AF115FC (1YD3) [010] LEG SHIELD diagram
![Yamaha Motors AF115FC (1YD3) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/oO8AHoKO.png)
1
Required: 1
LEG SHIELD 1
Price unavailable
1
Required: 1
LEG SHIELD 1
Price unavailable
$1.10
You save $0.20
-50%
3
Yamaha Motors
Spring Nut90183-05042-00
Required: 6
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
4
Yamaha Motors
Round Tapping Screw90160-05810-00
Required: 2
SCREW, ROUND TAPPING
$2.00
You save $0.35
5
Required: 1
GROMMET
Price unavailable
6
Required: 1
LEG SHIELD 2
Price unavailable
6
Required: 1
LEG SHIELD 2
Price unavailable
$1.10
You save $0.20
-50%
8
Yamaha Motors
Spring Nut90183-05042-00
Required: 6
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
9
Yamaha Motors
Round Tapping Screw90160-05810-00
Required: 2
SCREW, ROUND TAPPING
$2.00
You save $0.35
10
Required: 1
GROMMET
Price unavailable
11
Required: 1
PANEL, INNER 1
Price unavailable
12
Required: 1
PANEL, INNER 2
Price unavailable
12
Required: 1
PANEL, INNER 2
Price unavailable
-50%
13
Yamaha Motors
Spring Nut90183-05042-00
Required: 6
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
14
Yamaha Motors
Tapping Screw97702-50016-00
Required: 7
SCREW, TAPPING
$2.21
You save $0.39
15
Yamaha Motors
Tapping Screw97702-50016-00
Required: 4
SCREW, TAPPING
$2.21
You save $0.39
16
Yamaha Motors
Screw (M8 X 40)98980-06012-00
Required: 1
SCREW, BIND
Supersedes: 98902-06012-00
In stock
Only 3 remaining
$8.07
You save $1.42
17
Required: 1
COLLAR
Price unavailable
18
Required: 1
CAP
Price unavailable
19
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
-50%
20
Yamaha Motors
Spring Nut90183-05042-00
Required: 10
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
21
Required: 1
COVER, UNDER
Price unavailable
22
Required: 1
COVER, UNDER 2
Price unavailable
22
Required: 1
COVER, UNDER 2
Price unavailable
23
Required: 1
COVER, UNDER 3
Price unavailable
23
Required: 1
COVER, UNDER 3
Price unavailable
24
Yamaha Motors
Round Tapping Screw90160-05810-00
Required: 2
SCREW, ROUND TAPPING
$2.00
You save $0.35
25
Required: 1
DAMPER, PLATE
Price unavailable
26
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
-50%
27
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
28
Required: 1
FENDER, INNER
Price unavailable
29
Required: 1
GRAPHIC 1
Price unavailable
30
Required: 1
GRAPHIC 2
Price unavailable
31
Required: 1
GRAPHIC 3
Price unavailable
32
Required: 1
GRAPHIC 4
Price unavailable
33
Required: 1
GRAPHIC 1
Price unavailable
33
Required: 1
GRAPHIC 5
Price unavailable
34
Required: 2
GRAPHIC 6
Price unavailable
34
Required: 1
GRAPHIC 2
Price unavailable
35
Required: 1
GRAPHIC 3
Price unavailable
36
Required: 1
GRAPHIC 4
Price unavailable
37
Required: 1
GRAPHIC 5
Price unavailable
38
Required: 1
GRAPHIC 6
Price unavailable
39
Required: 1
GRAPHIC 7
Price unavailable
40
Required: 2
TUNING FORK MARK
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
