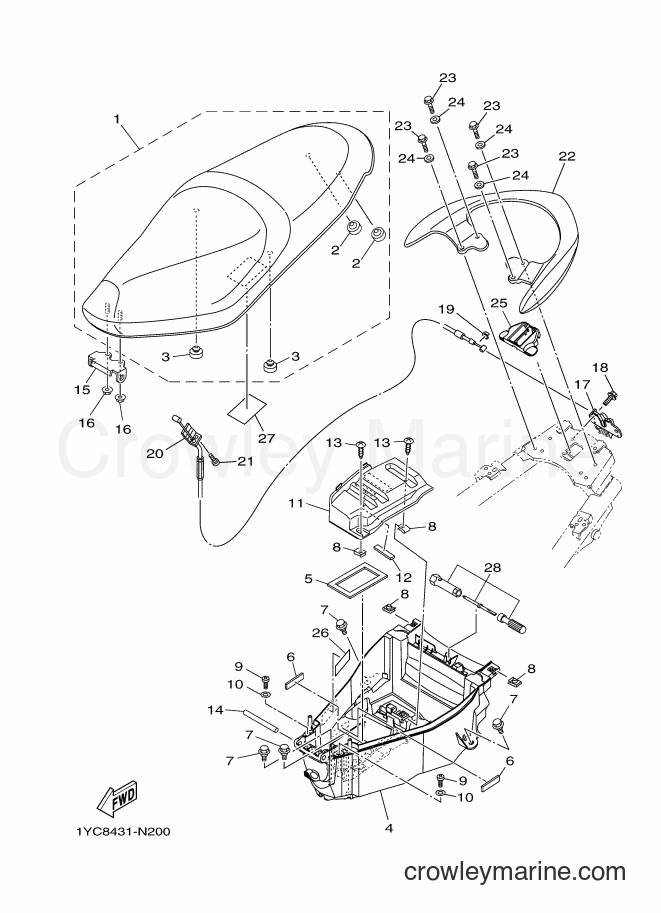

2014 Scooter AF115F - AF115F (1YC8) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115F (1YC8) [010] - SEAT
Change View:
1
Required: 1
DOUBLE SEAT ASSY(BLUE GRAY/YB)
Price unavailable
2
Required: 2
. PAD, SEAT
Price unavailable
3
Required: 2
. PAD, SEAT
Price unavailable
4
Required: 1
BOX ASSY
Price unavailable
5
Required: 1
DAMPER
Price unavailable
6
Required: 2
DAMPER, PLATE
Price unavailable
10
Required: 2
WASHER, PLATE
Price unavailable
11
Required: 1
COVER, BATTERY
Price unavailable
12
Required: 1
DAMPER, PLATE
Price unavailable
Truss Screw
13
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
14
Required: 1
PIN, SEAT FITTING
Price unavailable
15
Required: 1
HINGE, SEAT
Price unavailable
17
Required: 1
SEAT LOCK ASSY
Price unavailable
18
Required: 2
SCREW, PAN HEAD
Price unavailable
19
Required: 1
STOPPER
Price unavailable
20
Required: 1
CABLE, SEAT LOCK
Price unavailable
22
Required: 1
HANDLE, SEAT (0903,SMX)
Price unavailable
24
Required: 4
WASHER, PLATE
Price unavailable
25
Required: 1
PROTECTOR, FRAME
Price unavailable
26
Required: 1
LABEL, TIRE
Price unavailable
27
Required: 1
OIL, LABEL
Price unavailable
28
Required: 1
TOOL KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
