2014 Scooter AF115F - AF115F (1YC5) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

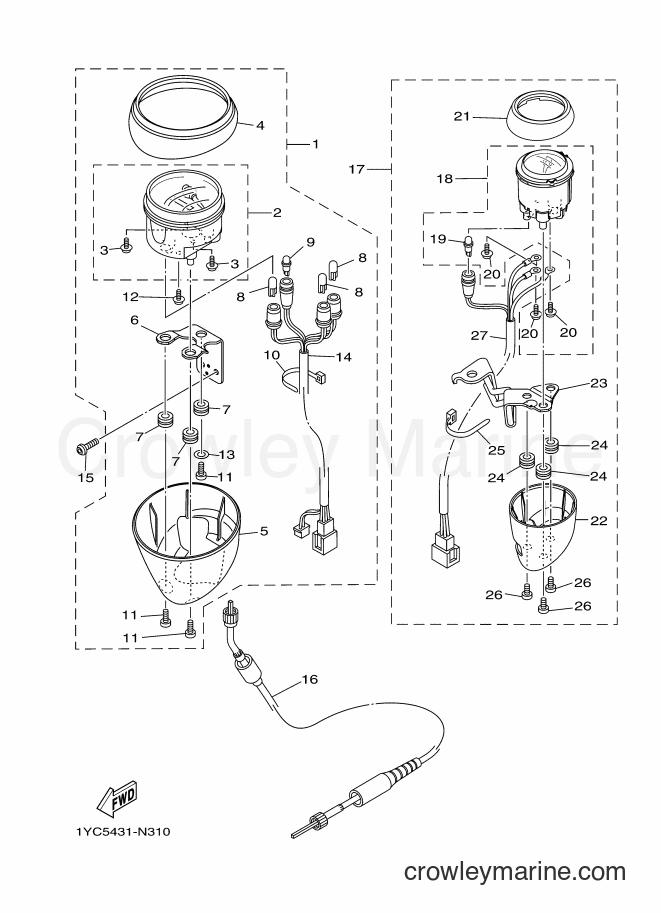

Yamaha Motors AF115F (1YC5) [010] - METER
Change View:
1
Required: 1
SPEEDOMETER ASSY (1217/0903)
Price unavailable
1
Required: 1
SPEEDOMETER ASSY (1369/1476)
Price unavailable
1
Required: 1
SPEEDOMETER ASSY (CROME/1258)
Price unavailable
2
Required: 1
. SPEEDO. COMP.
Price unavailable
2
Required: 1
. SPEEDO. COMP.
Price unavailable
3
Required: 2
. . SCREW, PAN HEAD WITH WASHER
Price unavailable
4
Required: 1
. CASE, METER UPPER (1217,BMH)
Price unavailable
4
Required: 1
. CASE, METER UPPER (1369,VPRM3)
Price unavailable
4
Required: 1
. CASE, METER UPPER (CROME)
Price unavailable
5
Required: 1
. CASE, SPEEDOMETER LOWER(MDRM3)
Price unavailable
5
Required: 1
. CASE, SPEEDOMETER LOWER(LVM2)
Price unavailable
5
Required: 1
. CASE, SPEEDOMETER LOWER(SMX)
Price unavailable
6
Required: 1
. BRACKET, METER 2
Price unavailable
7
Required: 3
. DAMPER
Price unavailable
8
Required: 3
. BULB (12V-1.7W T10)
Price unavailable
9
Required: 1
. BULB (T-6.5 12V-1.7W)
Price unavailable
10
Required: 1
. CLAMP
Price unavailable
11
Required: 3
. SCREW
Price unavailable
Pan Head Screw w/ Washer
12
Yamaha Motors
Pan Head Screw w/ Washer97602-03110-00
Required: 1
. SCREW, PAN HEAD WITH WASHER
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details
13
Required: 1
. WASHER, SPECIAL
Price unavailable
14
Required: 1
. SOCKET CORD ASSY
Price unavailable
15
Required: 2
SCREW
Price unavailable
16
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable
17
Required: 1
FUEL METER ASSY (1217/0903)
Price unavailable
17
Required: 1
FUEL METER ASSY (CROME/1258)
Price unavailable
17
Required: 1
FUEL METER ASSY (1369/1476)
Price unavailable
18
Required: 1
. METER COMP.
Price unavailable
18
Required: 1
. METER COMP.
Price unavailable
19
Required: 1
. . BULB, LED
Price unavailable
20
Required: 3
. . SCREW, PAN HEAD WITH WASHER
Price unavailable
21
Required: 1
. CASE COMP, UPPER 2(CROME)
Price unavailable
21
Required: 1
. CASE COMP, UPPER 2(1217,BMH)
Price unavailable
21
Required: 1
. CASE COMP, UPPER 2(1369,VPRM3)
Price unavailable
22
Required: 1
. CASE, UNDER (1476,LVM2)
Price unavailable
22
Required: 1
. CASE, UNDER (0903,SMX)
Price unavailable
22
Required: 1
. CASE, UNDER (1258,MDRM3)
Price unavailable
23
Required: 1
. BRACKET, METER
Price unavailable
24
Required: 3
. DAMPER
Price unavailable
25
Required: 1
. CLAMP
Price unavailable
26
Required: 3
. SCREW
Price unavailable
27
Required: 1
. SOCKET ASSY.
Price unavailable
