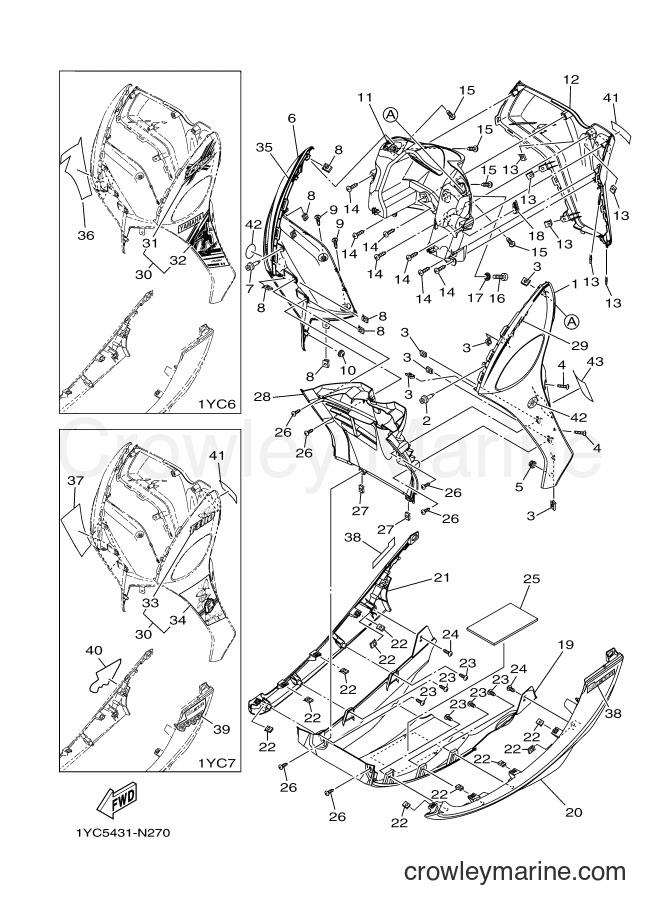

2014 Scooter AF115F - AF115F (1YC6) [010] LEG SHIELD diagram
![Yamaha Motors AF115F (1YC6) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/tgsp6rQh.png)
1
Required: 1
LEG SHIELD 1 (1124,WM6)
Price unavailable
1
Required: 1
LEG SHIELD 1 (1476,LVM2)
Price unavailable
1
Required: 1
LEG SHIELD 1 (09018,DRMK)
Price unavailable
$1.10
You save $0.20
-50%
3
Yamaha Motors
Spring Nut90183-05042-00
Required: 6
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
4
Yamaha Motors
Round Tapping Screw90160-05810-00
Required: 2
SCREW, ROUND TAPPING
$2.00
You save $0.35
5
Required: 1
GROMMET
Price unavailable
6
Required: 1
LEG SHIELD 2 (1476,LVM2)
Price unavailable
6
Required: 1
LEG SHIELD 2 (0918,DRMK)
Price unavailable
6
Required: 1
LEG SHIELD 2 (1124,WM6)
Price unavailable
$1.10
You save $0.20
-50%
8
Yamaha Motors
Spring Nut90183-05042-00
Required: 6
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
9
Yamaha Motors
Round Tapping Screw90160-05810-00
Required: 2
SCREW, ROUND TAPPING
$2.00
You save $0.35
10
Required: 1
GROMMET
Price unavailable
11
Required: 1
PANEL, INNER 1 (0903,SMX)
Price unavailable
11
Required: 1
PANEL, INNER 1 (1124,WM6)
Price unavailable
11
Required: 1
PANEL, INNER 1 (1258,MDRM3)
Price unavailable
12
Required: 1
PANEL, INNER 2 (1217,BMH)
Price unavailable
12
Required: 1
PANEL, INNER 2 (007M,MDS)
Price unavailable
12
Required: 1
PANEL, INNER 2 (1369,VPRM3)
Price unavailable
-50%
13
Yamaha Motors
Spring Nut90183-05042-00
Required: 6
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
14
Yamaha Motors
Tapping Screw97702-50016-00
Required: 7
SCREW, TAPPING
$2.21
You save $0.39
15
Yamaha Motors
Truss Screw97707-50012-00
Required: 4
SCREW, TAPPING
Supersedes: 97702-50012-00
$3.94
You save $0.69
16
Yamaha Motors
Screw (M8 X 40)98980-06012-00
Required: 1
SCREW, BIND
Supersedes: 98902-06012-00
In stock
Only 3 remaining
$8.07
You save $1.42
17
Required: 1
COLLAR
Price unavailable
18
Required: 1
CAP
Price unavailable
19
Required: 1
COVER, UNDER
Price unavailable
20
Required: 1
COVER, UNDER 2 (1258,MDRM3)
Price unavailable
20
Required: 1
COVER, UNDER 2 (1124,WM6)
Price unavailable
21
Required: 1
COVER, UNDER 3 (1124,WM6)
Price unavailable
21
Required: 1
COVER, UNDER 3 (1258,MDRM3)
Price unavailable
-50%
22
Yamaha Motors
Spring Nut90183-05042-00
Required: 10
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
23
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TAPPING
Supersedes: 97702-50012-00
$3.94
You save $0.69
24
Yamaha Motors
Round Tapping Screw90160-05810-00
Required: 2
SCREW, ROUND TAPPING
$2.00
You save $0.35
25
Required: 1
DAMPER, PLATE
Price unavailable
26
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TAPPING
Supersedes: 97702-50012-00
$3.94
You save $0.69
-50%
27
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
28
Required: 1
FENDER, INNER
Price unavailable
29
Required: 1
GRAPHIC 36
Price unavailable
30
Required: 1
GRAPHIC SET, LEG SHIELD 1
Price unavailable
30
Required: 1
GRAPHIC SET, LEG SHIELD 1
Price unavailable
31
Required: 1
. GRAPHIC, 44
Price unavailable
32
Required: 1
. GRAPHIC 45
Price unavailable
33
Required: 1
. GRAPHIC 39
Price unavailable
34
Required: 1
. GRAPHIC 40
Price unavailable
35
Required: 1
GRAPHIC 37
Price unavailable
36
Required: 1
GRAPHIC, 46
Price unavailable
37
Required: 1
GRAPHIC 41
Price unavailable
38
Required: 2
GRAPHIC 10
Price unavailable
39
Required: 1
GRAPHIC 42
Price unavailable
40
Required: 1
GRAPHIC 43
Price unavailable
41
Required: 1
EMBLEM
Price unavailable
41
Required: 1
EMBLEM
Price unavailable
42
Required: 2
TUNING FORK MARK
Price unavailable
43
Required: 1
LABEL, WARNING
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
