2014 Scooter AF115F - AF115F (1YC6) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

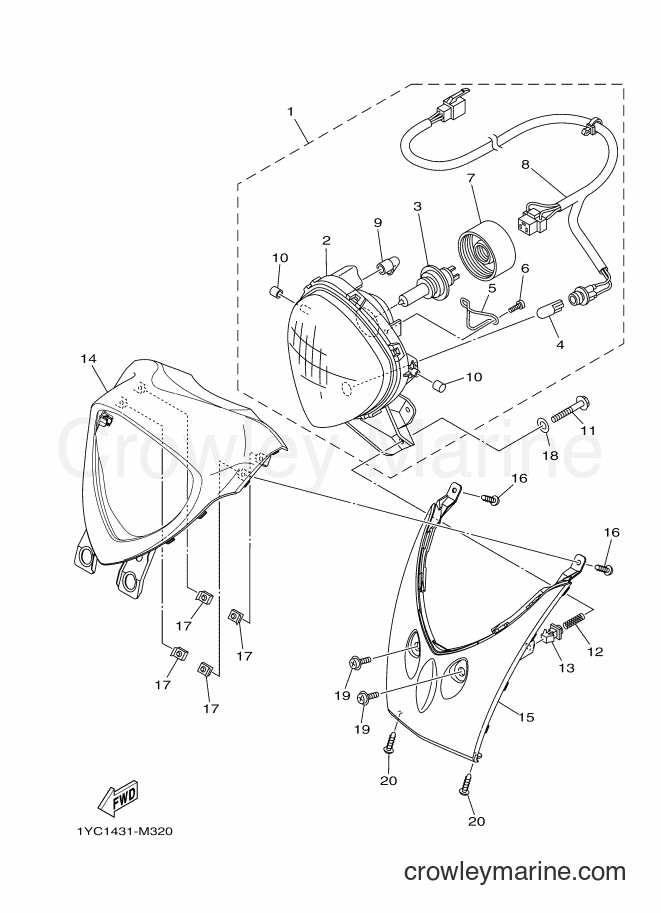

Yamaha Motors AF115F (1YC6) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. HEADLIGHT UNIT ASSY
Price unavailable
3
Required: 1
. BULB, HEADLIGHT (12V-35/35W)
Price unavailable
4
Required: 1
. BULB (12V-5W)
Price unavailable
5
Required: 1
. SPRING, SUPPORT
Price unavailable
6
Required: 1
. SCREW, SPECIAL
Price unavailable
7
Required: 1
. COVER, SOCKET
Price unavailable
8
Required: 1
. SOCKET CORD ASSY 1
Price unavailable
9
Required: 1
. TUBE ASSY
Price unavailable
10
Required: 2
. DAMPER, HEADLIGHT
Price unavailable
11
Required: 1
SCREW, RIM ADJUSTING
Price unavailable
12
Required: 1
SPRING, SCREW
Price unavailable
13
Required: 1
NUT, ADJUSTING
Price unavailable
14
Required: 1
COVER, HEADLIGHT (1124,WM6)
Price unavailable
14
Required: 1
COVER, HEADLIGHT (CR)
Price unavailable
14
Required: 1
COVER, HEADLIGHT (0903,SMX)
Price unavailable
15
Required: 1
COVER, FRONT (007M,MDS)
Price unavailable
15
Required: 1
COVER, FRONT (1369,VPRM3)
Price unavailable
15
Required: 1
COVER, FRONT (1217,BMH)
Price unavailable
Truss Screw
16
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
18
Required: 1
PLATE, RUBBER 1
Price unavailable
19
Required: 2
SCREW, WITH WASHER
Price unavailable
Truss Screw
20
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
