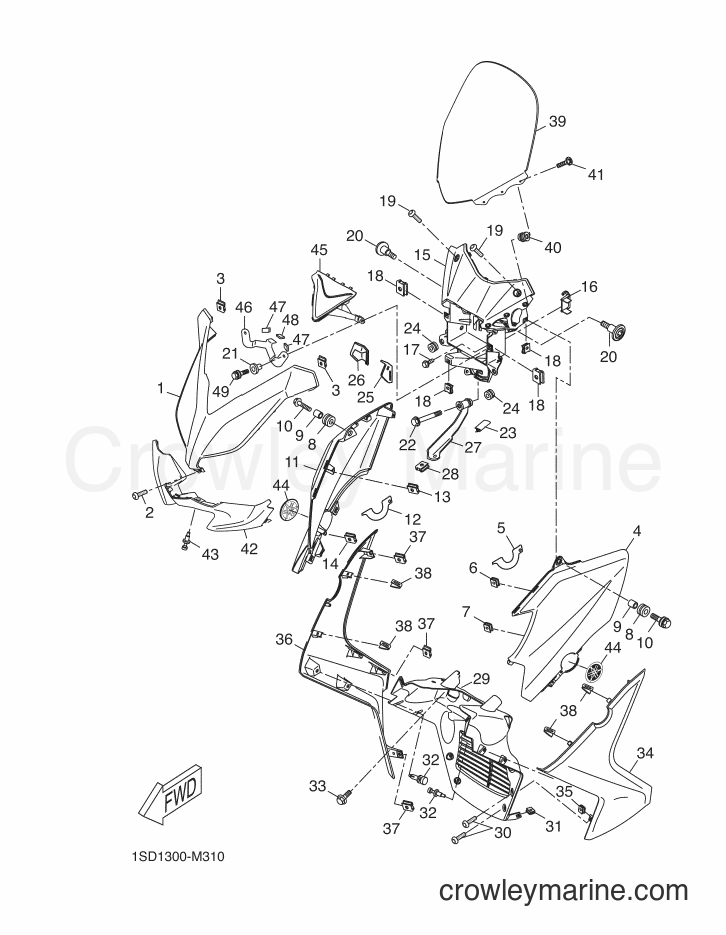

2013 Scooter YP400R - YP400R (1SD1) [050] WINDSHIELD diagram
![Yamaha Motors YP400R (1SD1) [050] - WINDSHIELD](https://cdn.crowleymarine.com/yamaha/WuPNw26F.png)
1
Required: 1
PANEL, INNER 1
Price unavailable
2
Required: 1
SCREW, TAPPING
Price unavailable
-50%
In stock
Only 1 remaining
$0.50
You save $0.50
4
Required: 1
BODY, FRONT UPPER 1
Price unavailable
5
Required: 1
TAPE 2
Price unavailable
6
Required: 1
NUT, SPRING
Price unavailable
-50%
In stock
Only 1 remaining
$0.50
You save $0.50
$7.22
You save $1.27
9
Required: 2
COLLAR
Price unavailable
10
Required: 2
BOLT, WITH WASHER
Price unavailable
11
Required: 1
BODY, FRONT UPPER 2
Price unavailable
12
Required: 1
TAPE 3
Price unavailable
13
Required: 1
NUT, SPRING
Price unavailable
-50%
In stock
Only 1 remaining
$0.50
You save $0.50
15
Required: 1
STAY 1
Price unavailable
16
Required: 1
STAY, RELAY
Price unavailable
17
Required: 1
BOLT, WITH WASHER
Price unavailable
$5.09
You save $0.90
19
Required: 2
SCREW, TAPPING
Price unavailable
20
Yamaha Motors
Bolt Flange (4LN)95817-08025-00
Required: 2
BOLT, FLANGE
Supersedes: 95812-08025-00
$8.07
You save $1.42
21
Required: 2
COLLAR
Price unavailable
22
Yamaha Motors
Flange Bolt95817-08055-00
Required: 1
BOLT, FLANGE
Supersedes: 95812-08055-00
$3.58
You save $0.63
23
Required: 1
MOLE
Price unavailable
$7.22
You save $1.27
25
Required: 1
DAMPER, LOCATING 3
Price unavailable
26
Required: 1
DAMPER, LOCATING 4
Price unavailable
27
Required: 1
STAY, HEAD LIGHT 1
Price unavailable
$4.67
You save $0.82
29
Required: 1
GRILL, AIR INTAKE 1
Price unavailable
30
Required: 1
SCREW, TAPPING
Price unavailable
-50%
In stock
Only 1 remaining
$0.50
You save $0.50
$5.52
You save $0.97
33
Required: 2
BOLT
Price unavailable
34
Required: 1
BODY, FRONT UNDER 1
Price unavailable
-50%
In stock
Only 1 remaining
$0.50
You save $0.50
36
Required: 1
BODY, FRONT UNDER 2
Price unavailable
-50%
In stock
Only 1 remaining
$0.50
You save $0.50
$7.22
You save $1.27
39
Required: 1
SCREEN
Price unavailable
$6.37
You save $1.12
41
Yamaha Motors
PLASTIC SCREW90150-05024-00
Required: 6
SCREW, ROUND HEAD
$2.89
You save $0.46
42
Required: 1
COVER
Price unavailable
$5.52
You save $0.97
44
Required: 2
EMBLEM
Price unavailable
45
Required: 1
COVER, BATTERY
Price unavailable
46
Required: 1
BRACKET, BATTERY
Price unavailable
47
Required: 2
DAMPER, PLATE
Price unavailable
48
Required: 1
DAMPER, PLATE
Price unavailable
49
Required: 2
BOLT, WITH WASHER
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
