All diagrams for this model

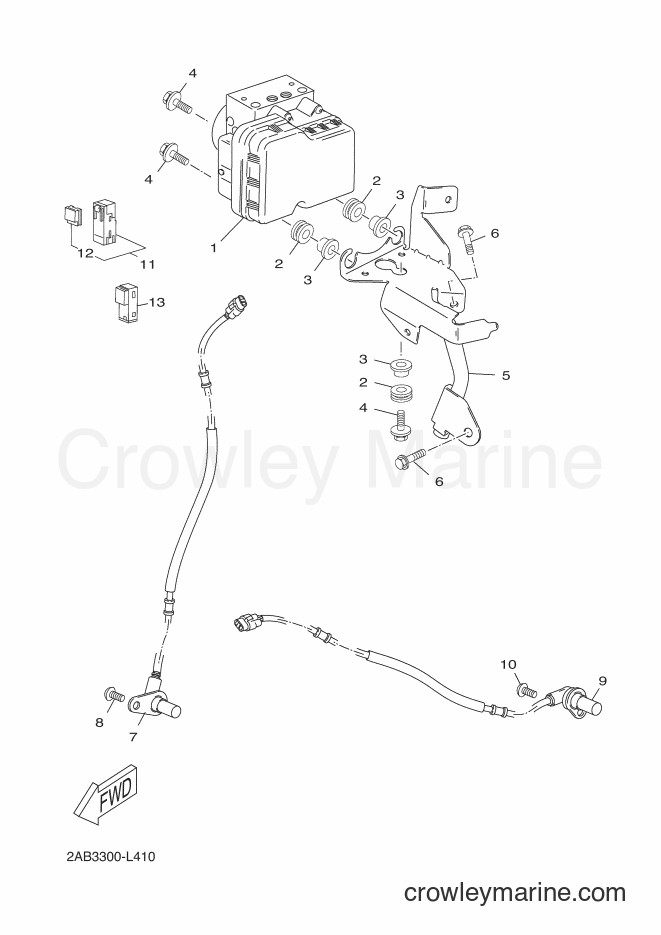

2013 Scooter YP125RA - YP125RA (2ABD) [020] ELECTRICAL 3 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP125RA (2ABD) [020] - ELECTRICAL 3
Change View:
1
Required: 1
HYDRAULIC UNIT ASSY
Price unavailable
2
Required: 3
GROMMET
Price unavailable
3
Required: 3
COLLAR
Price unavailable
4
Required: 3
BOLT, WITH WASHER
Price unavailable
5
Required: 1
BRACKET, UNIT
Price unavailable
BOLT
6
Yamaha Motors
BOLT90105-08841-00
Required: 2
BOLT, FLANGE
Supersedes: 9581M-08016-00
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
7
Required: 1
WHEEL SENSOR ASSY, FRONT
Price unavailable
Screw (M8 X 40)
8
Yamaha Motors
Screw (M8 X 40)90149-06068-00
Required: 1
SCREW
Supersedes: 90149-06069-00
Cross Ship
Leaves in 2-5 days
$4.70
$4.00
You save $0.71
More details
9
Required: 1
WHEEL SENSOR ASSY, REAR
Price unavailable
Screw (M8 X 40)
10
Yamaha Motors
Screw (M8 X 40)90149-06068-00
Required: 1
SCREW
Supersedes: 90149-06069-00
Cross Ship
Leaves in 2-5 days
$4.70
$4.00
You save $0.71
More details
Starter Relay
11
Yamaha Motors
Starter Relay1TP-81950-00-00
Required: 1
RELAY ASSY (1TP-00)
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
RELAY HOLDER
12
Yamaha Motors
RELAY HOLDER5EA-81952-00-00
Required: 1
. HOLDER, RELAY
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Starter Relay
13
Yamaha Motors
Starter Relay3GD-81950-01-00
Required: 1
RELAY ASSY (3GD-01)
Cross Ship
Leaves in 2-5 days
$78.99
$67.14
You save $11.85
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
