All diagrams for this model

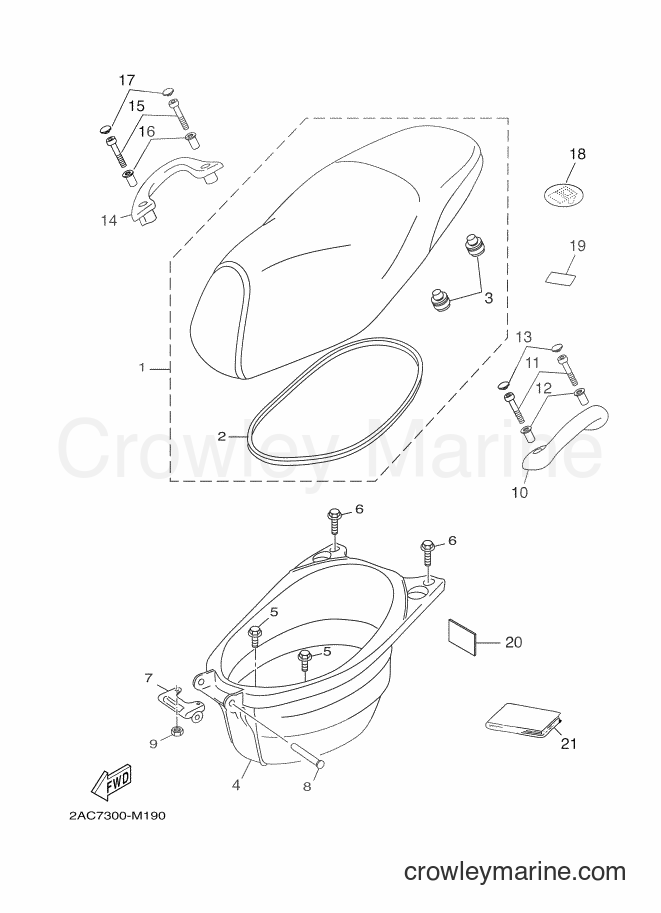

2013 Scooter YN50F - YN50F (2AC7) [040] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN50F (2AC7) [040] - SEAT
Change View:
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 1
. SEAL
Price unavailable
3
Required: 4
. PAD, SEAT
Price unavailable
4
Required: 1
BOX 1
Price unavailable
5
Required: 2
BOLT, WITH WASHER
Price unavailable
6
Required: 2
BOLT
Price unavailable
7
Required: 1
HINGE, SEAT
Price unavailable
PIN
8
Yamaha Motors
PIN90241-10015-00
Required: 1
PIN
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
SPECIAL SHAPE NUT
9
Yamaha Motors
SPECIAL SHAPE NUT90179-06403-00
Required: 2
NUT
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details
10
Required: 1
ASSIST, GRIP
Price unavailable
11
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
12
Required: 2
COLLAR
Price unavailable
Bolt Cap
13
Yamaha Motors
Bolt Cap341-23469-00-00
Required: 2
CAP, BOLT
Cross Ship
Leaves in 2-5 days
$10.99
$9.34
You save $1.65
More details
14
Required: 1
ASSIST,GRIP 2
Price unavailable
15
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
16
Required: 2
COLLAR
Price unavailable
Bolt Cap
17
Yamaha Motors
Bolt Cap341-23469-00-00
Required: 2
CAP, BOLT
Cross Ship
Leaves in 2-5 days
$10.99
$9.34
You save $1.65
More details
18
Required: 1
LABEL, CAUTION
Price unavailable
19
Required: 1
LABEL
Price unavailable
20
Required: 1
DAMPER, SEAT
Price unavailable
21
Required: 1
MANUAL,OWNER'S
Price unavailable
21
Required: 1
MANUAL,OWNER'S
Price unavailable
21
Required: 1
MANUAL,OWNER'S
Price unavailable
21
Required: 1
MANUAL,OWNER'S
Price unavailable
21
Required: 1
MANUAL,OWNER'S
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
