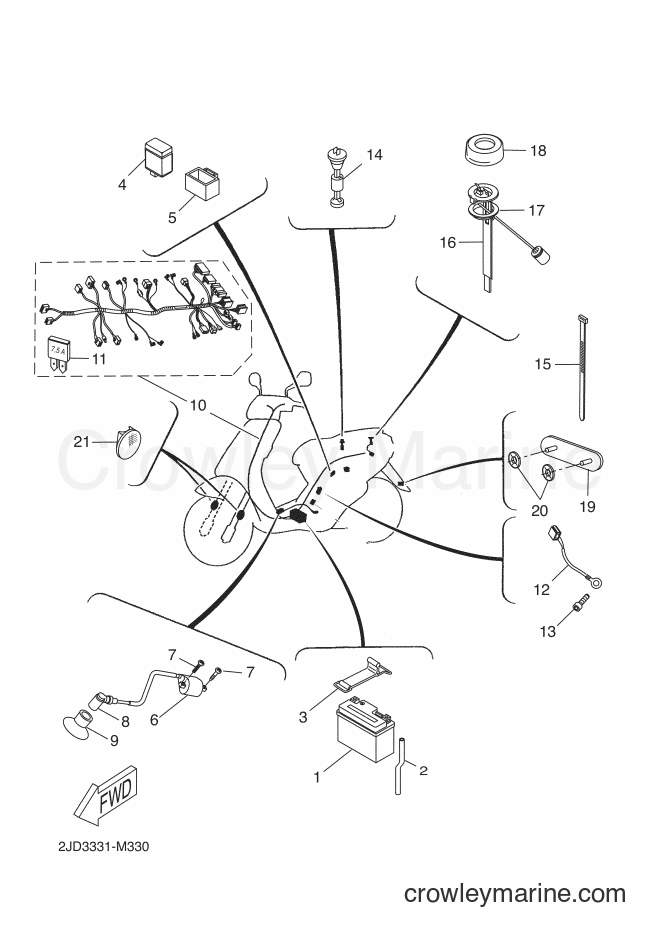

2013 Scooter YN50EM - YN50EM (2JD3) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN50EM (2JD3) [010] - ELECTRICAL 2
Change View:
YB4LB YUASA BATTERY
1
Yamaha Motors
YB4LB YUASA BATTERYYB4-LB000-00-00
Required: 1
BATTERY ASSY (12V 4AH YB4L-B)
Supersedes: 4SB-H2110-00-00
Cross Ship
Leaves in 2-5 days
$29.99
$25.49
You save $4.50
More details
2
Required: 1
PIPE, BREATHER
Price unavailable
3
Required: 1
BAND, BATTERY
Price unavailable
C.D.I. UNIT ASSY
4
Yamaha Motors
C.D.I. UNIT ASSY5BM-H5540-20-00
Required: 1
C.D.I. UNIT ASSY
Cross Ship
Leaves in 2-5 days
$155.99
$132.59
You save $23.40
More details
5
Required: 1
BAND
Price unavailable
6
Required: 1
IGNITION COIL ASSY
Price unavailable
7
Required: 1
BOLT
Price unavailable
Plug Cap Assembly
8
Yamaha Motors
Plug Cap AssemblySPC-LB05F-00-00
Required: 1
PLUG CAP ASSY
Supersedes: 3WG-H2370-10-00
Cross Ship
Leaves in 2-5 days
$28.99
$24.64
You save $4.35
More details
Plug Cap Seal
9
Yamaha Motors
Plug Cap Seal3WG-H2372-00-00
Required: 1
SEAL, PLUG CAP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
10
Required: 1
WIRE HARNESS ASSY
Price unavailable
11
Required: 1
. FUSE (7.5A)
Price unavailable
12
Required: 1
WIRE, EARTH LEAD
Price unavailable
Bolt (4MY)
13
Yamaha Motors
Bolt (4MY)91317-06010-00
Required: 1
BOLT
Supersedes: 91312-06010-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Oil Level Gauge Assembly
14
Yamaha Motors
Oil Level Gauge Assembly53L-85720-10-00
Required: 1
OIL LEVEL GAUGE ASSY
Supersedes: 3VL-H5720-10-00
Cross Ship
Leaves in 2-5 days
$64.99
$55.24
You save $9.75
More details
Switch Cord Band
15
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 4
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
16
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
17
Required: 1
. GASKET, SENDER UNIT
Price unavailable
18
Required: 1
HOUSING, FUEL METER
Price unavailable
19
Required: 1
REAR REFLECTOR ASSY
Price unavailable
20
Required: 2
NUT, SPRING
Price unavailable
21
Required: 2
REFLECTOR, FRONT 1
Price unavailable
