2013 Scooter YN50E - YN50E (2DK1) [050] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

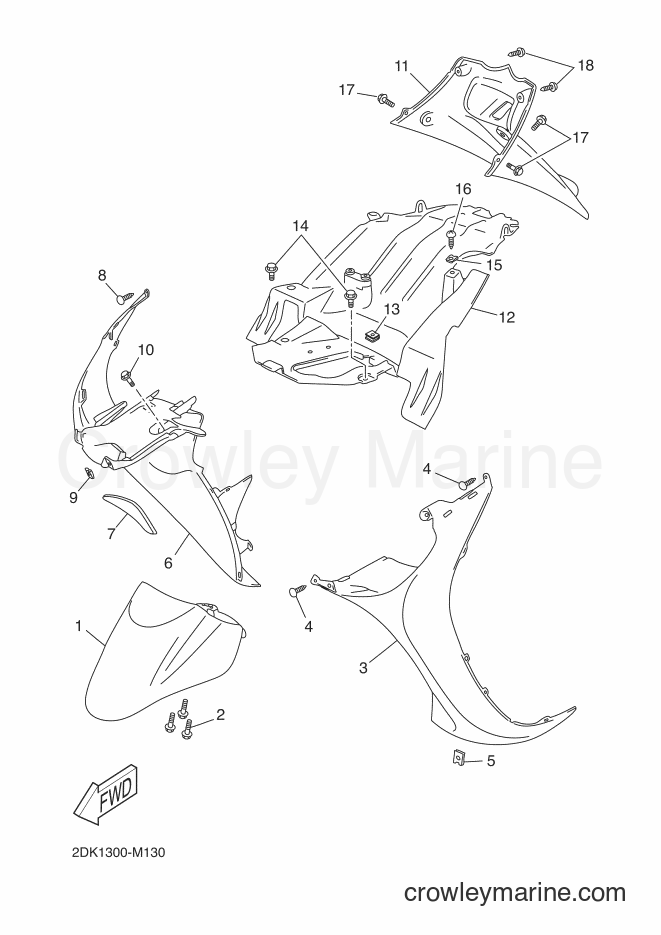

Yamaha Motors YN50E (2DK1) [050] - FENDER
Change View:
2
Required: 3
BOLT
Price unavailable
4
Required: 2
SCREW, TAPPING
Price unavailable
5
Required: 1
NUT, SPRING
Price unavailable
7
Required: 1
PROTECTOR 1
Price unavailable
8
Required: 1
SCREW, TAPPING
Price unavailable
9
Required: 2
NUT, SPRING
Price unavailable
10
Required: 2
BOLT
Price unavailable
11
Required: 1
FENDER, REAR
Price unavailable
12
Required: 1
GUARD, MUD
Price unavailable
13
Required: 1
NUT, SPRING
Price unavailable
14
Required: 2
BOLT, WITH WASHER
Price unavailable
15
Required: 1
NUT, SPRING
Price unavailable
16
Required: 1
SCREW, TAPPING
Price unavailable
Bolt With Washer
17
Yamaha Motors
Bolt With Washer90119-06118-00
Required: 3
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
18
Required: 2
SCREW, TAPPING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
