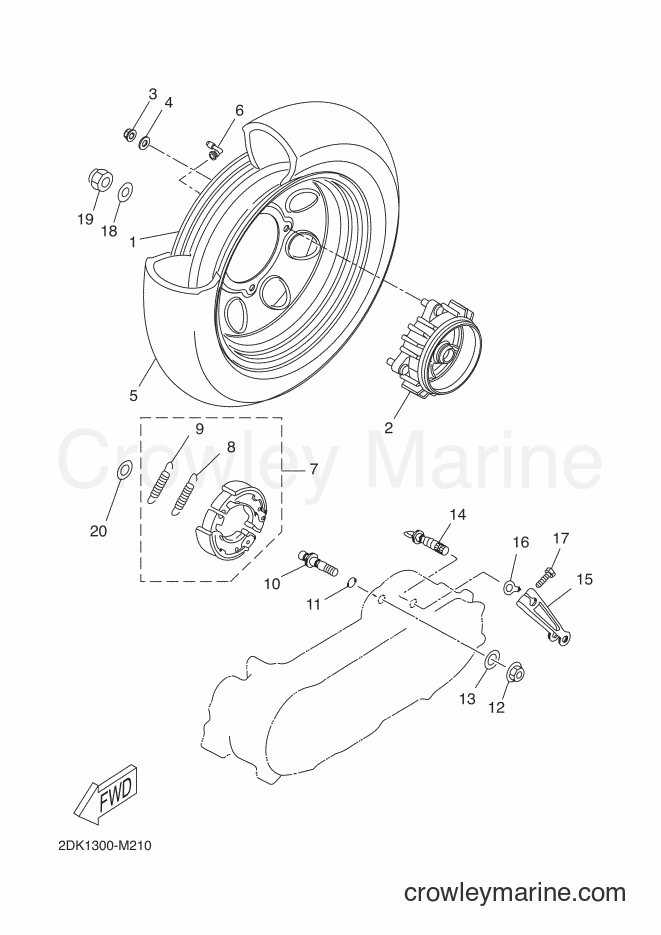

2013 Scooter YN50E - YN50E (2DK1) [080] REAR WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN50E (2DK1) [080] - REAR WHEEL
Change View:
1
Required: 1
PANEL, WHEEL
Price unavailable
2
Required: 1
HUB ASSY
Price unavailable
3
Required: 4
NUT, SELF-LOCKING
Price unavailable
92990-10200-00
4
Yamaha Motors
92990-10200-0092903-10200-00
Required: 4
WASHER
Supersedes: 92902-10200-00
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
5
Required: 1
TIRE (130/70-12 56L)
Price unavailable
Air Valve Assembly
6
Yamaha Motors
Air Valve Assembly3VL-F5170-10-00
Required: 1
AIR VALVE ASSY
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
7
Required: 1
BRAKE SHOE SET
Price unavailable
8
Required: 1
. SPRING, TENSION
Price unavailable
9
Required: 1
. SPRING, TENSION
Price unavailable
10
Required: 1
PIN, PIVOT
Price unavailable
11
Required: 1
O-RING
Price unavailable
Flange Bolt
12
Yamaha Motors
Flange Bolt95704-10500-00
Required: 1
NUT, AXLE
Supersedes: 3VL-F5182-00-00
Cross Ship
Leaves in 2-5 days
$2.20
$2.28
You save $-0.08
More details
Wheel Washer
13
Yamaha Motors
Wheel Washer3VL-F5384-00-00
Required: 1
WASHER, WHEEL
Cross Ship
Leaves in 2-5 days
$0.15
$0.35
You save $-0.20
More details
14
Required: 1
CAMSHAFT
Price unavailable
CAMSHAFT LEVER
15
Yamaha Motors
CAMSHAFT LEVER4VU-F5355-00-00
Required: 1
LEVER, CAMSHAFT
Cross Ship
Leaves in 2-5 days
$50.99
$43.34
You save $7.65
More details
16
Required: 1
PLATE, INDICATOR
Price unavailable
17
Required: 1
BOLT, FLANGE
Price unavailable
Plate Washer
18
Yamaha Motors
Plate Washer90201-142M6-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Self-Locking Nut
19
Yamaha Motors
Self-Locking Nut90185-14150-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 90185-14081-00
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
20
Required: 1
WASHER, PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
