All diagrams for this model

2013 Scooter XC50 - XC50 (1TS2) [010] COWLING 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

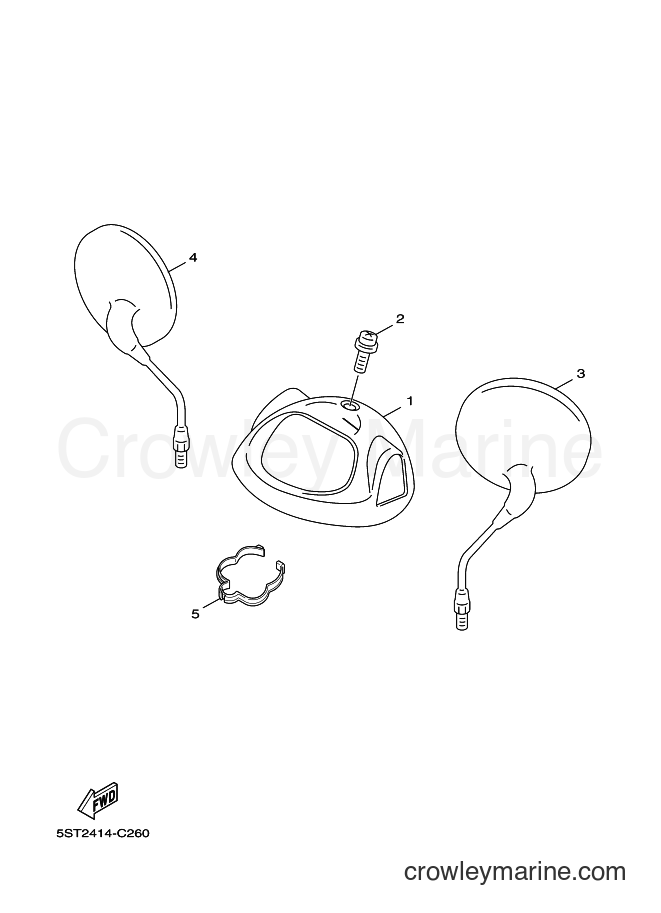

Yamaha Motors XC50 (1TS2) [010] - COWLING 1
Change View:
HANDLEBAR COVER
1
Yamaha Motors
HANDLEBAR COVER5ST-F6143-00-P0
Required: 1
COVER, HANDLE UPPER 1
Cross Ship
Leaves in 2-5 days
$22.99
$19.54
You save $3.45
More details
Screw With Washer
2
Yamaha Motors
Screw With Washer90159-05820-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$1.90
$1.61
You save $0.28
More details
Rear View Mirror Assembly
3
Yamaha Motors
Rear View Mirror Assembly5FH-F6280-00-00
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Cross Ship
Leaves in 2-5 days
$38.99
$33.14
You save $5.85
More details
Rear View Mirror Assembly
4
Yamaha Motors
Rear View Mirror Assembly5FH-F6290-00-00
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Cross Ship
Leaves in 2-5 days
$38.99
$33.14
You save $5.85
More details
Wire Clamp
5
Yamaha Motors
Wire Clamp5ST-F627E-00-00
Required: 1
CLAMP, WIRE
Cross Ship
Leaves in 2-5 days
$3.50
$2.98
You save $0.52
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
