2013 Scooter XC115S - XC115S (1DR4) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

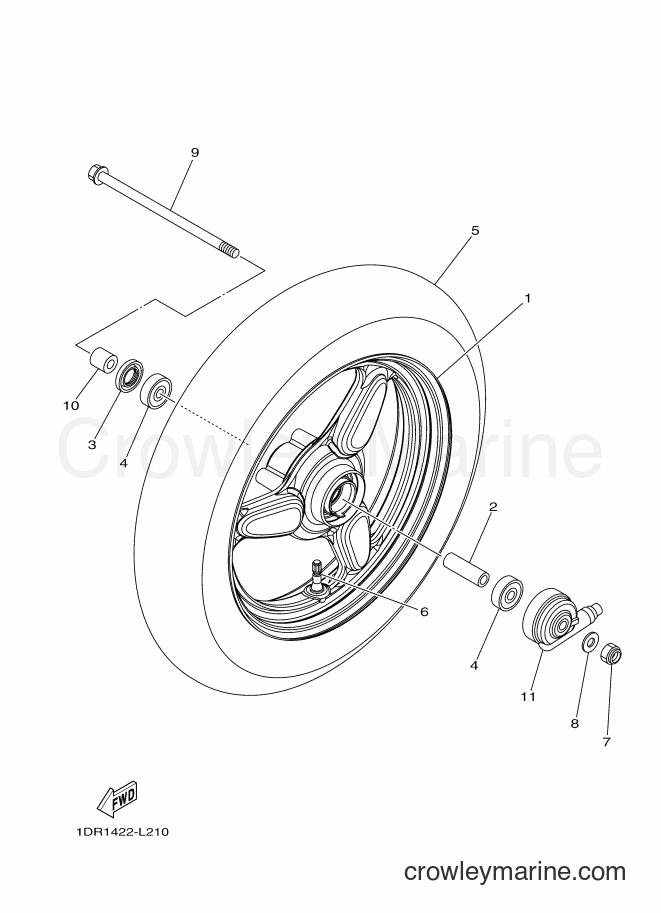

Yamaha Motors XC115S (1DR4) [010] - FRONT WHEEL
Change View:
1
Required: 1
CAST WHEEL, FRONT (0035,SL)
Price unavailable
2
Required: 1
COLLAR
Price unavailable
Oil Seal
3
Yamaha Motors
Oil Seal93106-20813-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$1.05
$0.89
You save $0.16
More details
4
Required: 2
BEARING
Price unavailable
5
Required: 1
TIRE (90/90-12 M6219 44J/TL)
Price unavailable
6
Required: 1
VALVE, RIM
Price unavailable
7
Required: 1
NUT, SELF-LOCKING
Price unavailable
Plain Washer
8
Yamaha Motors
Plain Washer90201-10035-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details
9
Required: 1
AXLE, WHEEL
Price unavailable
10
Required: 1
COLLAR
Price unavailable
11
Required: 1
GEAR UNIT ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
