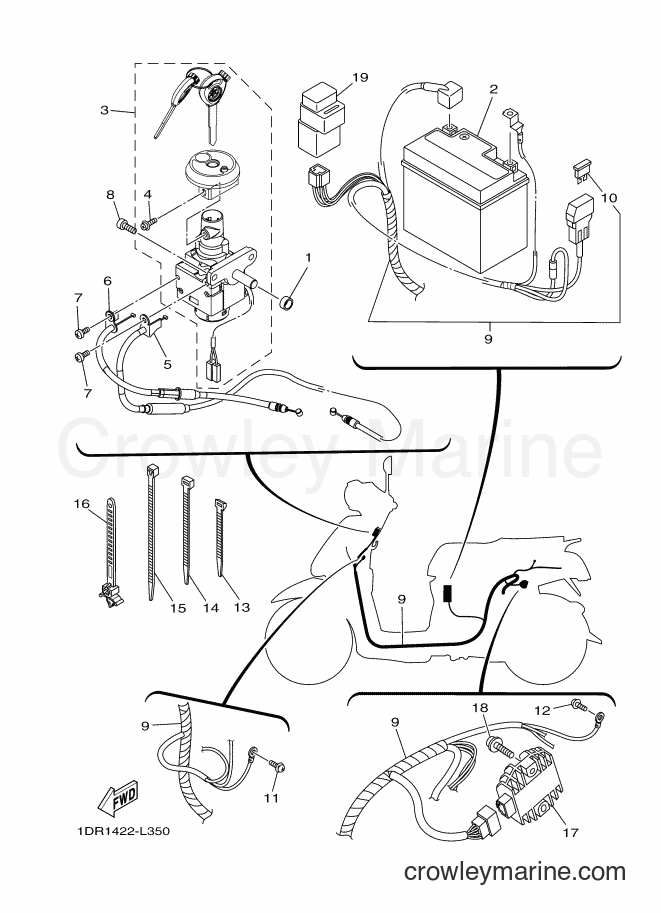

2013 Scooter XC115S - XC115S (1DR3) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC115S (1DR3) [010] - ELECTRICAL 1
Change View:
1
Required: 1
SEAL 1
Price unavailable
2
Required: 1
BATTERY ASSY (YTX5L-BS)
Price unavailable
3
Required: 1
MAIN SWITCH ASSY
Price unavailable
4
Required: 1
. SCREW, PAN HEAD WITH WASHER
Price unavailable
5
Required: 1
CABLE, SEAT LOCK
Price unavailable
6
Required: 1
WIRE, PULL
Price unavailable
Pan Head Screw
7
Yamaha Motors
Pan Head Screw98517-05012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05012-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
BOLT
8
Yamaha Motors
BOLT91312-06014-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
9
Required: 1
WIRE HARNESS ASSY
Price unavailable
10
Required: 1
. FUSE (15A-BL)
Price unavailable
11
Required: 1
SCREW, PAN HEAD WITH WASHER
Price unavailable
Pan Head With Washer Screw
12
Yamaha Motors
Pan Head With Washer Screw97602-05210-00
Required: 1
SCREW, PAN HEAD WITH WASHER
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
13
Required: 1
CLAMP
Price unavailable
Clamp
14
Yamaha Motors
Clamp90464-50800-00
Required: 3
CLAMP
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
Clamp
15
Yamaha Motors
Clamp90464-70800-00
Required: 3
CLAMP
Cross Ship
Leaves in 2-5 days
$0.85
$0.72
You save $0.13
More details
16
Required: 1
CLAMP
Price unavailable
17
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
18
Required: 2
SCREW, PAN HEAD WITH WASHER
Price unavailable
19
Required: 1
STARTER RELAY ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
