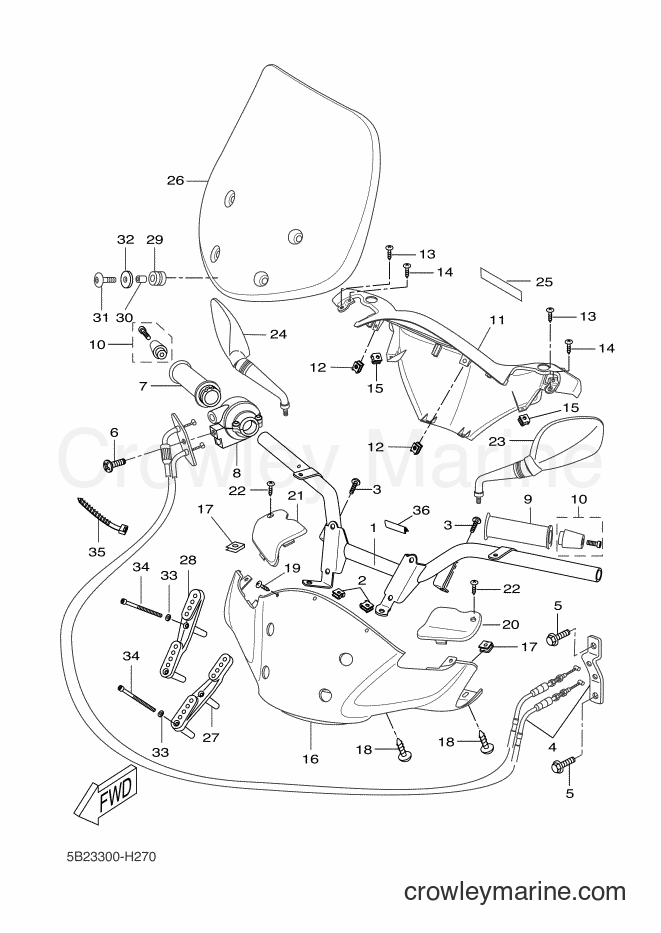

2013 Scooter VP250 - VP250 (5B2B) [020] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VP250 (5B2B) [020] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE COMP.
Price unavailable
Spring Nut
2
Yamaha Motors
Spring Nut90183-05X03-00
Required: 4
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
3
Required: 2
SCREW, TAPPING
Price unavailable
4
Required: 1
THROTTLE CABLE ASSY
Price unavailable
BOLT
5
Yamaha Motors
BOLT90101-05X01-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$5.60
$4.76
You save $0.84
More details
6
Required: 1
SCREW, PAN HEAD
Price unavailable
Grip Assembly
7
Yamaha Motors
Grip Assembly4YR-26240-02-00
Required: 1
GRIP ASSY
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details
8
Required: 1
CAP GRIP ASSY
Price unavailable
Grip
9
Yamaha Motors
Grip4YR-26241-02-00
Required: 1
GRIP (LEFT)
Cross Ship
Leaves in 2-5 days
$19.99
$16.99
You save $3.00
More details
10
Required: 2
END GRIP ASSY
Price unavailable
11
Required: 1
COVER, UPPER
Price unavailable
Spring Nut
12
Yamaha Motors
Spring Nut90183-05X03-00
Required: 5
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Tapping Screw
13
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details
14
Required: 4
SCREW, TAPPING
Price unavailable
15
Required: 2
NUT, SPRING
Price unavailable
16
Required: 1
COVER, HAND UPPER 2
Price unavailable
Spring Nut
17
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
18
Required: 4
SCREW, TAPPING
Price unavailable
Tapping Screw
19
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 5
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details
20
Required: 1
CAP, CABLE CONNECTOR
Price unavailable
21
Required: 1
CAP
Price unavailable
22
Required: 2
SCREW, TAPPING
Price unavailable
23
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
24
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
25
Required: 1
LABEL, WARNING
Price unavailable
26
Required: 1
WINDSCREEN ASSY
Price unavailable
27
Required: 1
BRACKET 4
Price unavailable
28
Required: 1
BRACKET 5
Price unavailable
29
Required: 4
GROMMET
Price unavailable
30
Required: 4
COLLAR
Price unavailable
31
Required: 4
BOLT,HEX. SOCKET BUTTON
Price unavailable
Washer Plain
32
Yamaha Motors
Washer Plain90201-06X02-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
Plain Washer
33
Yamaha Motors
Plain Washer90201-06X01-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.15
$2.68
You save $0.47
More details
34
Required: 4
BOLT, HEXAGON SOCKET HEAD
Price unavailable
35
Required: 1
CLAMP
Price unavailable
36
Required: 1
PROTECTOR
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
