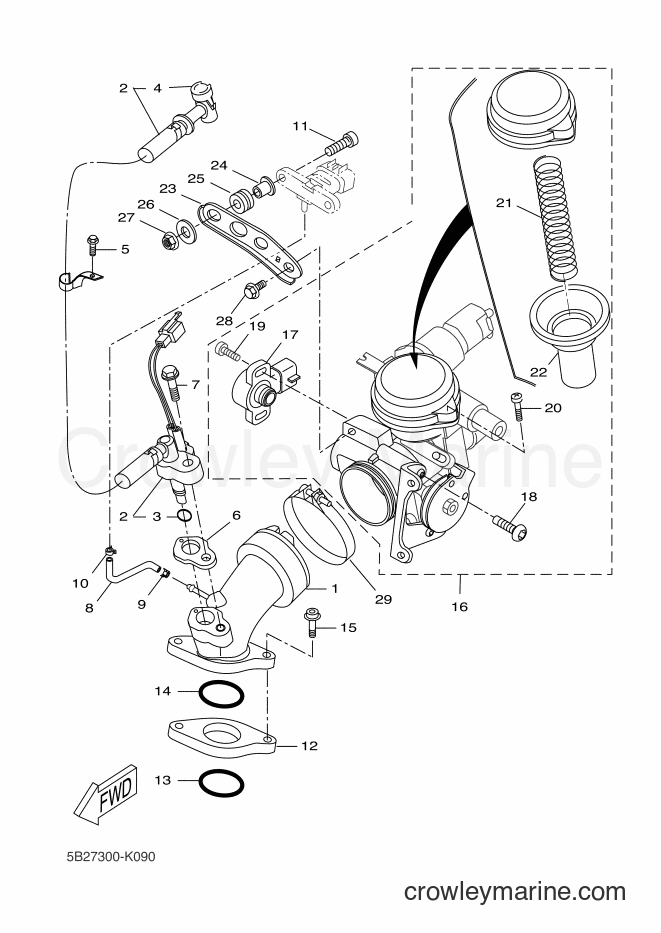

2013 Scooter VP250 - VP250 (5B2B) [060] INTAKE 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VP250 (5B2B) [060] - INTAKE 2
Change View:
1
Required: 1
MANIFOLD
Price unavailable
2
Required: 1
PIPE INLET ASSEMBLY
Price unavailable
O-Ring
3
Yamaha Motors
O-Ring5CA-14147-00-00
Required: 1
. O-RING
Cross Ship
Leaves in 2-5 days
$10.99
$9.34
You save $1.65
More details
Clamp
4
Yamaha Motors
Clamp5VU-24135-00-00
Required: 1
. CLAMP 1
Cross Ship
Leaves in 2-5 days
$21.99
$18.69
You save $3.30
More details
Bolt (4MY)
5
Yamaha Motors
Bolt (4MY)91317-06010-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Manifold Gasket
6
Yamaha Motors
Manifold Gasket15B-13556-00-00
Required: 1
GASKET, MANIFOLD
Cross Ship
Leaves in 2-5 days
$28.99
$24.64
You save $4.35
More details
Flange Bolt
7
Yamaha Motors
Flange Bolt95817-06025-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
8
Required: 1
HOSE, AIR
Price unavailable
Scissor Clip
9
Yamaha Motors
Scissor Clip90467-07138-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details
10
Required: 1
CLIP
Price unavailable
12
Required: 1
JOINT
Price unavailable
13
Required: 1
O-RING
Price unavailable
14
Required: 1
O-RING
Price unavailable
15
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
16
Required: 1
THROTTLE BODY ASSY
Price unavailable
Throttle Sensor Assembly
17
Yamaha Motors
Throttle Sensor Assembly5RU-85885-00-00
Required: 1
. THROTTLE SENSOR ASSY
Cross Ship
Leaves in 2-5 days
$112.99
$96.04
You save $16.95
More details
Screw (M8 X 40)
19
Yamaha Motors
Screw (M8 X 40)5CA-14216-00-00
Required: 2
. SCREW
Cross Ship
Leaves in 2-5 days
$0.60
$0.51
You save $0.09
More details
Screw (M8 X 40)
20
Yamaha Motors
Screw (M8 X 40)5LB-14216-00-00
Required: 2
. SCREW
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
21
Required: 1
. SPRING
Price unavailable
22
Required: 1
. VALVE ASSY
Price unavailable
23
Required: 1
BRACKET 1
Price unavailable
24
Required: 2
COLLAR
Price unavailable
25
Required: 2
GROMMET
Price unavailable
26
Required: 2
WASHER, PLATE
Price unavailable
Flange Nut
27
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
29
Required: 1
HOSE CLAMP ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
