All diagrams for this model

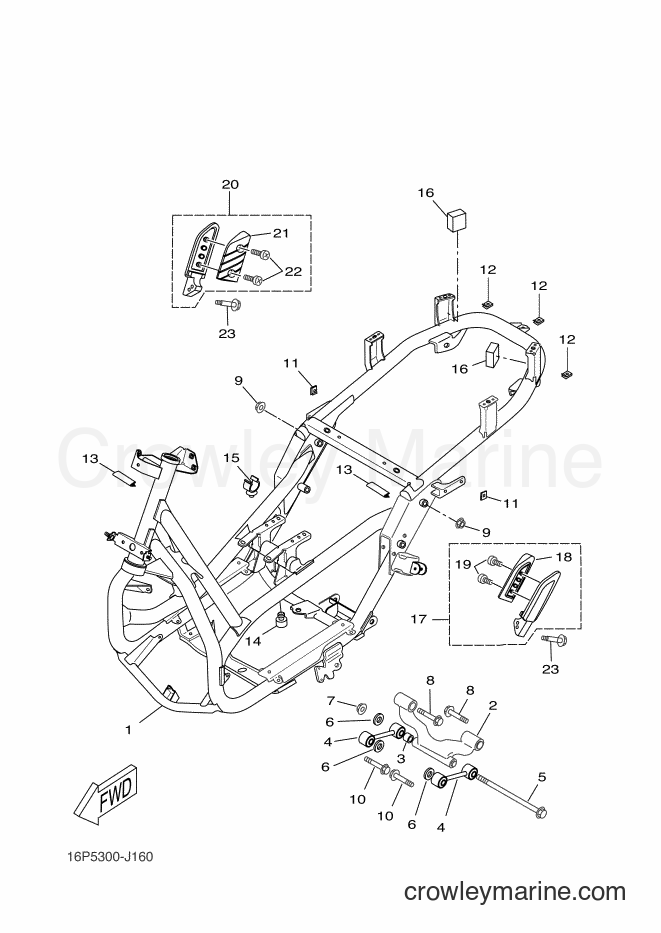

2013 Scooter VP250 - VP250 (5B2B) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VP250 (5B2B) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
ENGINE BRACKET COMP. 2
Price unavailable
3
Required: 1
COLLAR
Price unavailable
4
Required: 2
STAY, ENGINE
Price unavailable
5
Required: 1
BOLT, FLANGE
Price unavailable
Plate Washer
6
Yamaha Motors
Plate Washer90201-105A2-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Self-Locking Nut
7
Yamaha Motors
Self-Locking Nut90185-10154-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
8
Required: 2
BOLT, FLANGE
Price unavailable
Self-Locking Nut
9
Yamaha Motors
Self-Locking Nut90185-12072-00
Required: 2
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
FLANGE BOLT (4GB)
10
Yamaha Motors
FLANGE BOLT (4GB)95817-10045-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details
Spring Nut
11
Yamaha Motors
Spring Nut90183-06X00-00
Required: 2
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Spring Nut
12
Yamaha Motors
Spring Nut90183-06X00-00
Required: 3
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
13
Required: 4
PROTECTOR
Price unavailable
Seat Pad
14
Yamaha Motors
Seat Pad3VL-F4741-00-00
Required: 2
PAD, SEAT
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
15
Required: 1
CLIP
Price unavailable
16
Required: 2
DAMPER
Price unavailable
17
Required: 1
REAR FOOTREST ASSY 1
Price unavailable
18
Required: 1
. COVER, REAR FOOTREST
Price unavailable
19
Required: 2
. SCREW, SPECIAL
Price unavailable
20
Required: 1
REAR FOOTREST ASSY 2
Price unavailable
21
Required: 1
. COVER, REAR FOOTREST
Price unavailable
22
Required: 2
. SCREW, SPECIAL
Price unavailable
23
Required: 2
BOLT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
