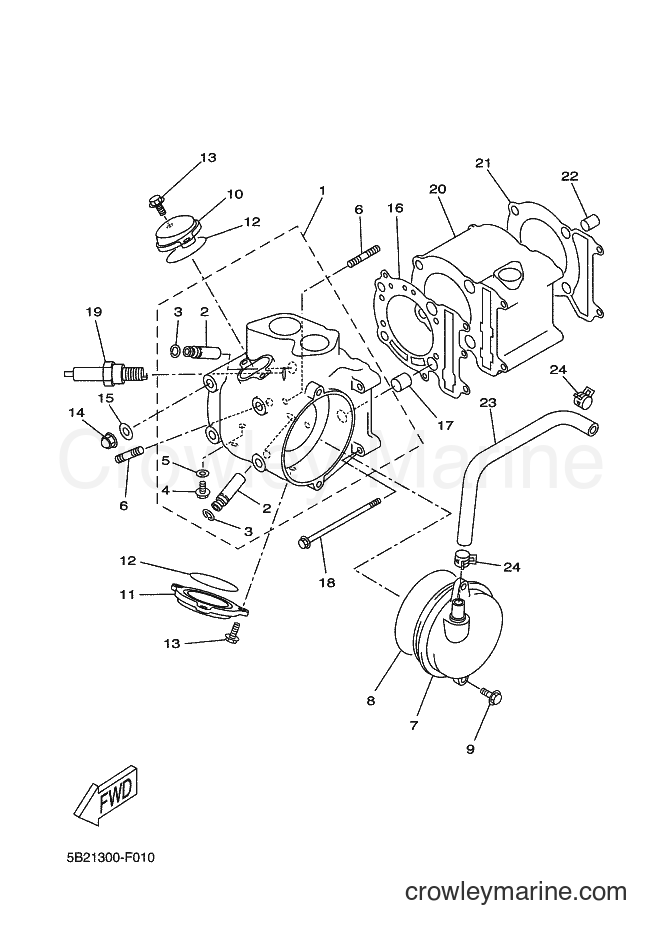

2013 Scooter VP250 - VP250 (5B2B) [010] CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VP250 (5B2B) [010] - CYLINDER
Change View:
1
Required: 1
CYLINDER HEAD ASSY
Price unavailable
Intake Valve Guide
2
Yamaha Motors
Intake Valve Guide4G0-11133-11-00
Required: 2
. GUIDE, VALVE 1
Supersedes: 4G0-11133-10-00
Cross Ship
Leaves in 2-5 days
$53.99
$45.89
You save $8.10
More details
Circlip (Outer)
3
Yamaha Motors
Circlip (Outer)93440-10085-00
Required: 2
. CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
4
Required: 1
. BOLT, FLANGE
Price unavailable
5
Required: 1
. WASHER, PLATE
Price unavailable
6
Required: 2
BOLT, STUD
Price unavailable
7
Required: 1
BREATHER ASSY
Price unavailable
8
Required: 1
O-RING
Price unavailable
9
Required: 2
BOLT, FLANGE
Price unavailable
10
Required: 1
COVER, CYLINDER HEAD SIDE 2
Price unavailable
11
Required: 1
COVER, CYLINDER HEAD SIDE 3
Price unavailable
12
Required: 2
O-RING
Price unavailable
13
Required: 2
BOLT, FLANGE
Price unavailable
Crown Nut
14
Yamaha Motors
Crown Nut90176-08026-00
Required: 4
NUT, CROWN
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
15
Required: 4
WASHER, PLATE
Price unavailable
16
Required: 1
GASKET, CYLINDER HEAD 1
Price unavailable
18
Required: 2
BOLT, FLANGE
Price unavailable
19
Required: 1
PLUG, SPARK (NGK DPR8EA-9)
Price unavailable
20
Required: 1
CYLINDER 1
Price unavailable
21
Required: 1
GASKET, CYLINDER
Price unavailable
22
Required: 2
PIN, DOWEL
Price unavailable
23
Required: 1
PIPE, BREATHER 1
Price unavailable
Clip (3YX)
24
Yamaha Motors
Clip (3YX)90467-13133-00
Required: 2
CLIP
Supersedes: 90467-13064-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
