All diagrams for this model

2013 Scooter T135SEC - T135SEC (55S3) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

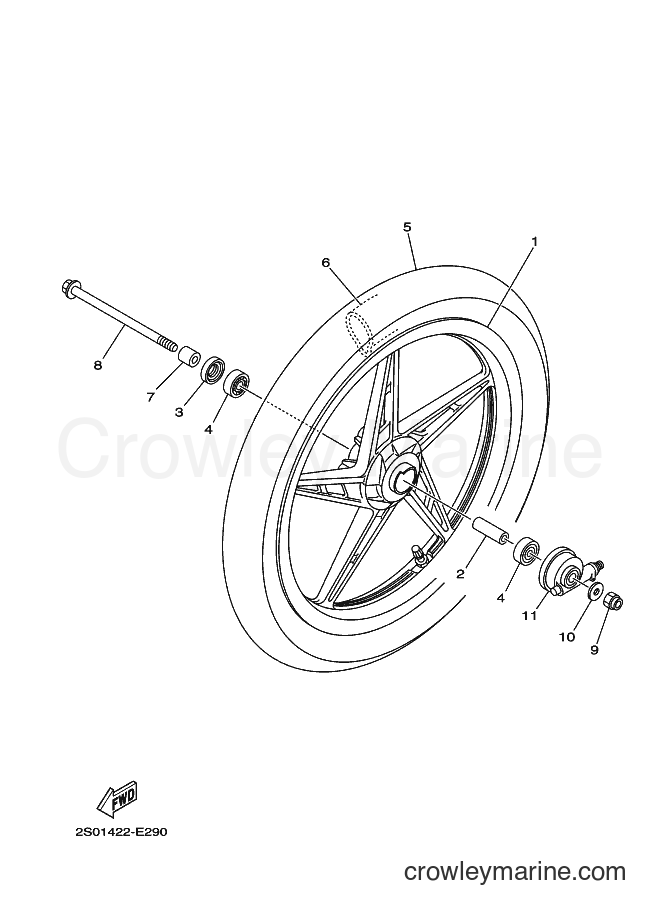

Yamaha Motors T135SEC (55S3) [010] - FRONT WHEEL
Change View:
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
2
Required: 1
SPACER
Price unavailable
3
Required: 1
OIL SEAL
Price unavailable
4
Required: 2
BEARING
Price unavailable
5
Required: 1
TIRE (70/90-17M/C 38P D102FA)
Price unavailable
5
Required: 1
TIRE (70/90-17M/C 38P NF63)
Price unavailable
6
Required: 1
TUBE (2.25/2.50-17 TR4)
Price unavailable
6
Required: 1
TUBE (2.25-17 TR4)
Price unavailable
517 F. WHEEL COLLAR
7
Yamaha Motors
517 F. WHEEL COLLAR90387-10277-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
8
Required: 1
AXLE, WHEEL
Price unavailable
9
Required: 1
NUT, SELF-LOCKING
Price unavailable
Plain Washer
10
Yamaha Motors
Plain Washer90201-101J1-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 1
GEAR UNIT ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
