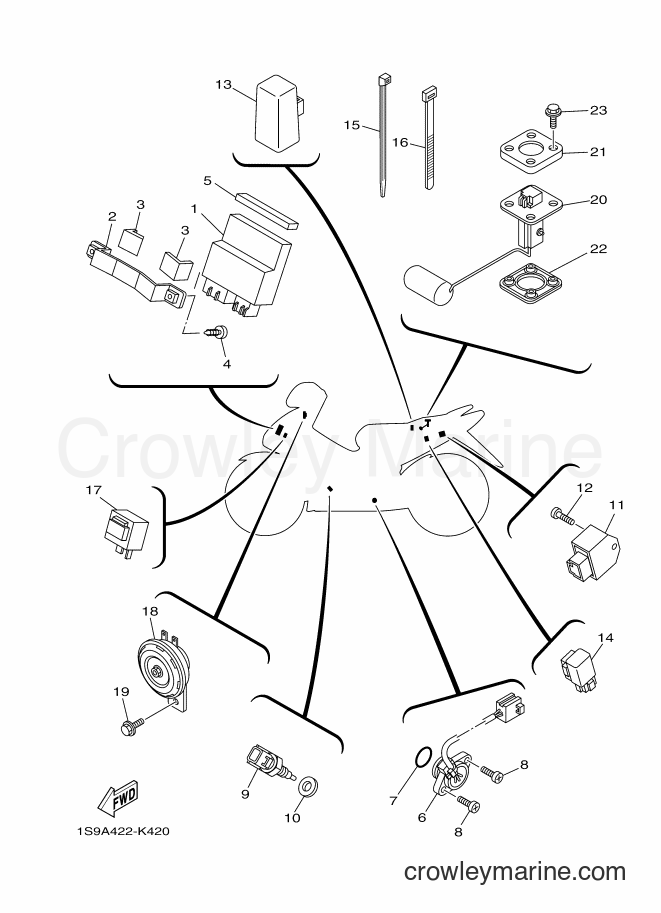

2013 Scooter T135SEC - T135SEC (1S9C) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T135SEC (1S9C) [010] - ELECTRICAL 2
Change View:
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Required: 1
BRACKET 1
Price unavailable
3
Required: 2
DAMPER, PLATE
Price unavailable
Truss Screw
4
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
5
Required: 1
DAMPER, PLATE
Price unavailable
6
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
7
Required: 1
O-RING
Price unavailable
9
Required: 1
THERMOSENSOR ASSY
Price unavailable
10
Required: 1
GASKET
Price unavailable
11
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
12
Required: 1
SCREW,WITH WASHER
Price unavailable
13
Required: 1
STARTER RELAY ASSY
Price unavailable
14
Required: 1
RELAY ASSY
Price unavailable
Clamp
15
Yamaha Motors
Clamp90464-50800-00
Required: 6
CLAMP
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
16
Required: 1
BAND, SWITCH CORD
Price unavailable
17
Required: 1
FLASHER RELAY ASSY
Price unavailable
18
Required: 1
HORN
Price unavailable
20
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
21
Required: 1
RETAINER
Price unavailable
22
Required: 1
GASKET, SENDER UNIT
Price unavailable
Bolt with Washer
23
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
