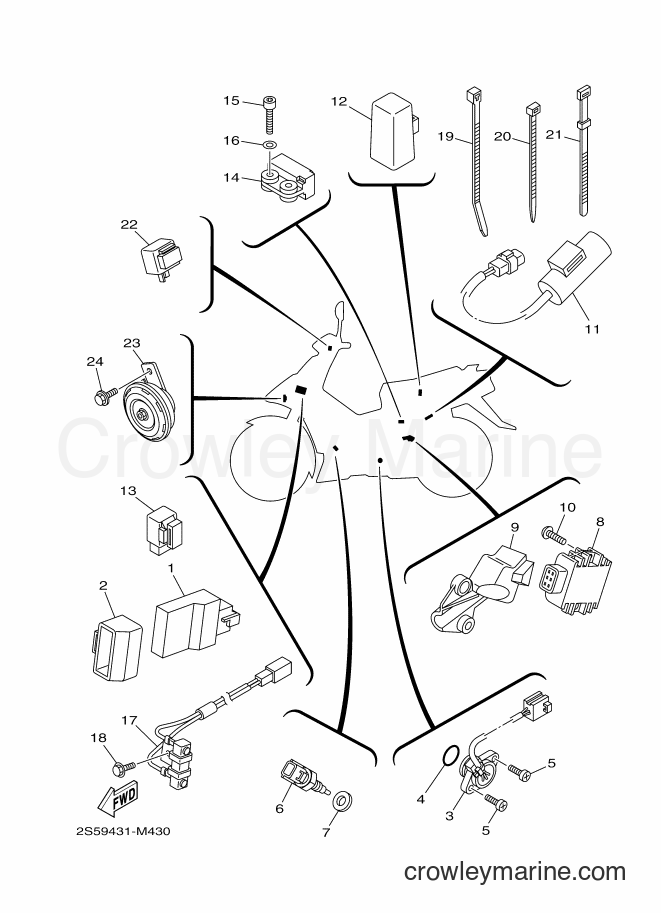

2013 Scooter T135F - T135F (2S5A) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T135F (2S5A) [010] - ELECTRICAL 2
Change View:
1
Required: 1
ENGINE CONTROL UNIT ASSY
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
4
Required: 1
O-RING
Price unavailable
6
Required: 1
THERMOSENSOR ASSY
Price unavailable
7
Required: 1
GASKET
Price unavailable
8
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
9
Required: 1
COVER, CONNECTER
Price unavailable
10
Required: 2
SCREW
Price unavailable
11
Required: 1
CONDENSER, SMOOTHING
Price unavailable
12
Required: 1
STARTER RELAY ASSY
Price unavailable
13
Required: 1
RELAY ASSY
Price unavailable
14
Required: 1
SENSOR, LEAN ANGLE
Price unavailable
Socket Bolt
15
Yamaha Motors
Socket Bolt91317-04020-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
Plate Washer
16
Yamaha Motors
Plate Washer90201-047A2-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$4.00
$3.40
You save $0.60
More details
17
Required: 1
RESISTOR ASSY
Price unavailable
Clamp
19
Yamaha Motors
Clamp90464-70800-00
Required: 5
CLAMP
Cross Ship
Leaves in 2-5 days
$0.85
$0.72
You save $0.13
More details
Clamp
20
Yamaha Motors
Clamp90464-50800-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
21
Required: 1
BAND, SWITCH CORD
Price unavailable
22
Required: 1
FLASHER RELAY ASSY
Price unavailable
23
Required: 1
HORN
Price unavailable
