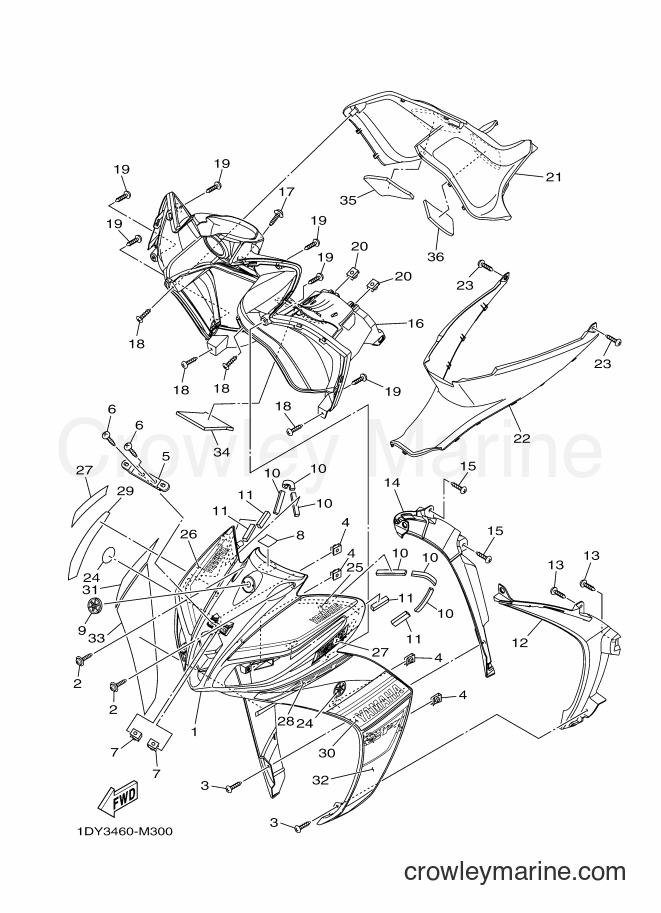

2013 Scooter T115FSEC - T115FSEC (1DY3) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FSEC (1DY3) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
Screw with Washer
2
Yamaha Motors
Screw with Washer90159-06067-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
5
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
Tapping Screw
6
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
8
Required: 1
SEAL
Price unavailable
9
Required: 1
EMBLEM, 1
Price unavailable
10
Required: 6
DAMPER
Price unavailable
11
Required: 4
DAMPER, PLATE
Price unavailable
12
Required: 1
PANEL, INNER 1
Price unavailable
Tapping Screw
13
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
14
Required: 1
PANEL, INNER 2
Price unavailable
Tapping Screw
15
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
16
Required: 1
LEG SHIELD 2
Price unavailable
Screw with Washer
17
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Tapping Screw
18
Yamaha Motors
Tapping Screw97702-50016-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
21
Required: 1
CAP
Price unavailable
22
Required: 1
COVER 2
Price unavailable
Tapping Screw
23
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
24
Required: 2
TUNING FORK MARK
Price unavailable
25
Required: 1
GRAPHIC, 13
Price unavailable
26
Required: 1
GRAPHIC, 14
Price unavailable
27
Required: 2
GRAPHIC, 15
Price unavailable
28
Required: 1
GRAPHIC, 16
Price unavailable
29
Required: 1
GRAPHIC 17
Price unavailable
30
Required: 1
GRAPHIC, 18
Price unavailable
31
Required: 1
GRAPHIC 19
Price unavailable
32
Required: 1
GRAPHIC 20
Price unavailable
33
Required: 1
GRAPHIC 21
Price unavailable
34
Required: 1
DAMPER
Price unavailable
35
Required: 1
DAMPER, LOCATING 1
Price unavailable
36
Required: 1
DAMPER, LOCATING 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
