All diagrams for this model

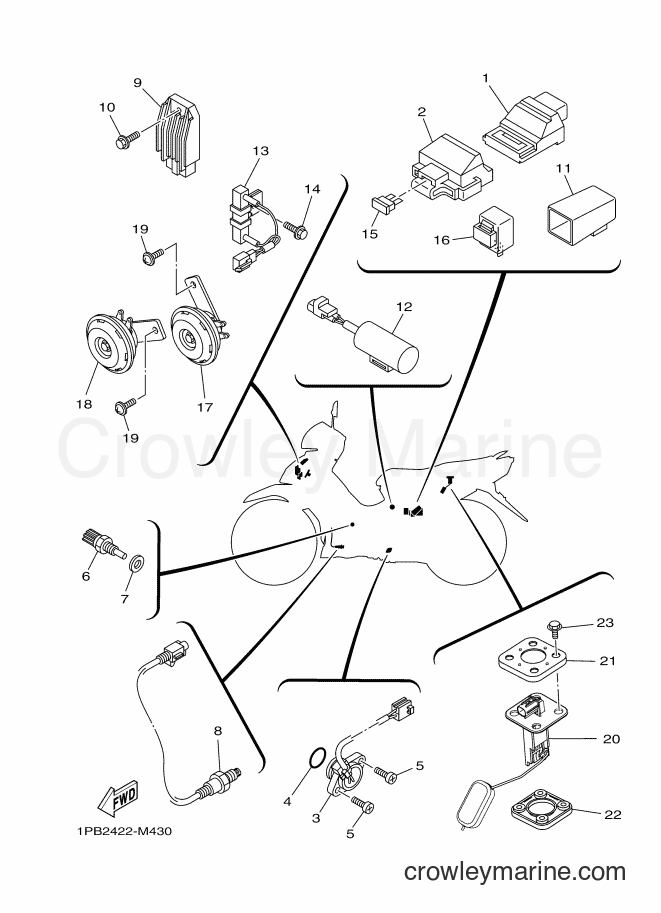

2013 Scooter T115FSEC - T115FSEC (1PB3) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FSEC (1PB3) [010] - ELECTRICAL 2
Change View:
1
Required: 1
ENGINE CONTROL UNIT ASSY
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
4
Required: 1
O-RING
Price unavailable
6
Required: 1
THERMO UNIT
Price unavailable
Tank Cap Gasket
7
Yamaha Motors
Tank Cap Gasket90430-10802-00
Required: 1
GASKET
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
8
Required: 1
SENSOR, OXYGEN
Price unavailable
9
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
Flange Bolt
10
Yamaha Motors
Flange Bolt95022-06014-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.40
$2.89
You save $0.51
More details
11
Required: 1
STARTER RELAY ASSY
Price unavailable
12
Required: 1
CONDENSER, SMOOTHING
Price unavailable
13
Required: 1
RESISTOR ASSY
Price unavailable
95811-06010-00
14
Yamaha Motors
95811-06010-0095821-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95822-06010-00
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
15
Required: 1
FUSE (15A-BL)
Price unavailable
16
Required: 1
FLASHER RELAY ASSY
Price unavailable
17
Required: 1
HORN
Price unavailable
18
Required: 1
HORN
Price unavailable
19
Required: 2
SCREW, WITH WASHER
Price unavailable
20
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
21
Required: 1
RETAINER
Price unavailable
22
Required: 1
GASKET, SENDER UNIT
Price unavailable
Bolt with Washer
23
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
