All diagrams for this model

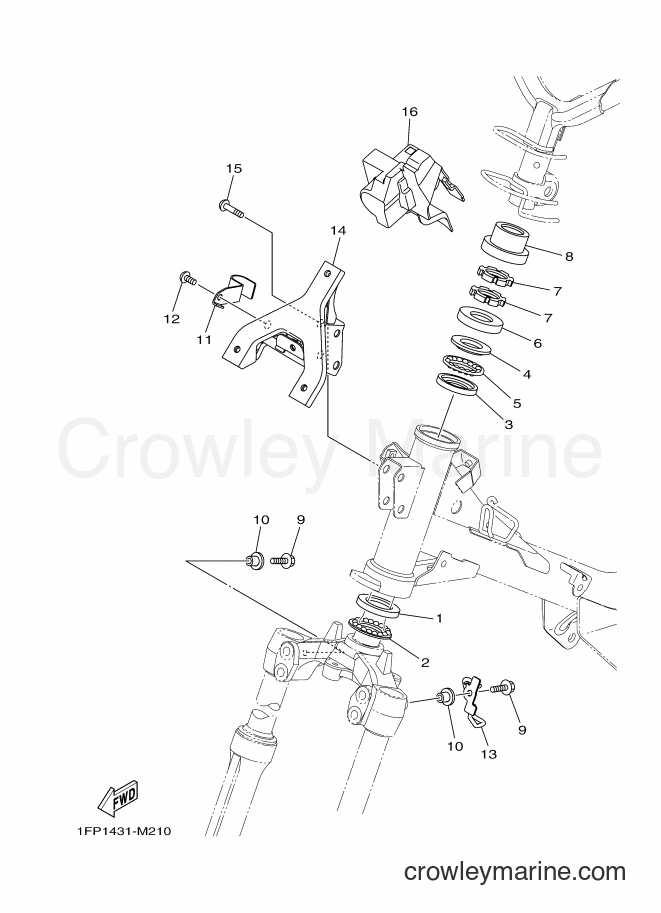

2013 Scooter T115FLS - T115FLS (1FP1) [010] STEERING 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115FLS (1FP1) [010] - STEERING 2
Change View:
1
Required: 1
RACE, BALL 2
Price unavailable
2
Required: 1
RETAINER, BALL BEARING
Price unavailable
3
Required: 1
RACE, BALL 2
Price unavailable
4
Required: 1
RACE, BALL 1
Price unavailable
5
Required: 1
RETAINER, BALL BEARING
Price unavailable
6
Required: 1
COVER, BALL RACE 2
Price unavailable
Nut
7
Yamaha Motors
Nut90179-25004-00
Required: 2
NUT
Supersedes: 90179-25033-00
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
8
Required: 1
COVER, BALL RACE 1
Price unavailable
Flange Bolt
9
Yamaha Motors
Flange Bolt95022-06016-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
COLLAR
10
Yamaha Motors
COLLAR90387-06857-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details
11
Required: 1
HOLDER, WIRE
Price unavailable
Button head bolt
12
Yamaha Motors
Button head bolt92012-06010-00
Required: 1
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
13
Required: 1
HOLDER, CABLE
Price unavailable
14
Required: 1
STAY
Price unavailable
Button head bolt
15
Yamaha Motors
Button head bolt92012-08030-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
16
Required: 1
PROTECTOR
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
