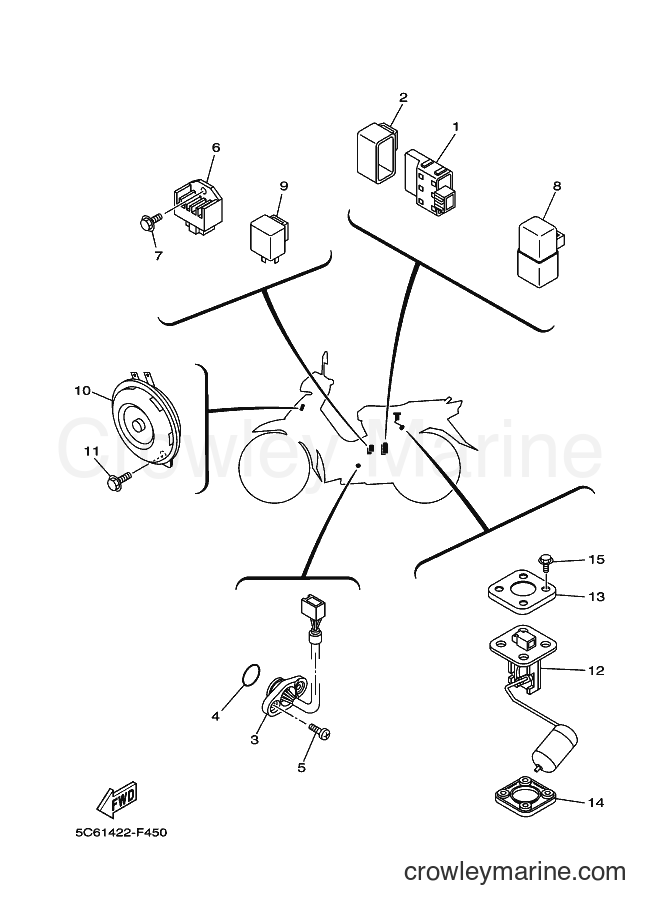

2013 Scooter T110LE - T110LE (5C6J) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110LE (5C6J) [010] - ELECTRICAL 2
Change View:
1
Required: 1
C.D.I. UNIT COMP.
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
4
Required: 1
O-RING
Price unavailable
6
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
Flange Bolt
7
Yamaha Motors
Flange Bolt95027-06014-00
Required: 1
BOLT, FLANGE
Supersedes: 9502M-06014-00
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details
8
Required: 1
STARTER RELAY ASSY
Price unavailable
9
Required: 1
FLASHER RELAY ASSY
Price unavailable
10
Required: 1
HORN
Price unavailable
95817-06010-00
11
Yamaha Motors
95817-06010-0095812-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
12
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
13
Required: 1
RETAINER
Price unavailable
14
Required: 1
GASKET, SENDER UNIT
Price unavailable
Bolt with Washer
15
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
