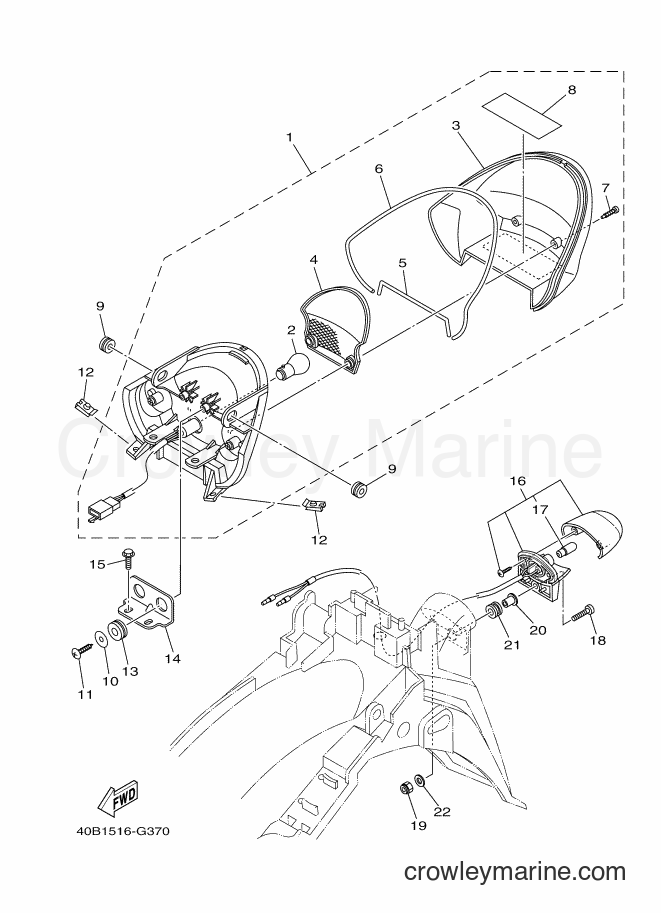

2013 Scooter T110C - T110C (40B6) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110C (40B6) [010] - TAILLIGHT
Change View:
1
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. BULB (12V 21/5W)
Price unavailable
3
Required: 1
. COVER, TAILLIGHT
Price unavailable
4
Required: 1
. LENS, TAILLIGHT
Price unavailable
5
Required: 1
. GASKET, TAILLIGHT
Price unavailable
6
Required: 1
. GASKET, TAIL LENS
Price unavailable
SCREW,TAPPING(3XW)
7
Yamaha Motors
SCREW,TAPPING(3XW)97702-40120-00
Required: 2
. SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$1.38
$1.17
You save $0.21
More details
8
Required: 1
. GRAPHIC
Price unavailable
GROMMET, WATER TUBE (UPPER)
9
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-13005-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Plain Washer
10
Yamaha Motors
Plain Washer90201-06033-00
Required: 2
WASHER, PLATE
Supersedes: 90201-06843-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Truss Screw
11
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50014-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
12
Required: 2
NUT, SPRING
Price unavailable
13
Required: 2
GROMMET
Price unavailable
14
Required: 1
BRACKET, TAILLIGHT
Price unavailable
16
Required: 1
LICENCE LIGHT ASSY
Price unavailable
17
Required: 1
. BULB (12V-5W)
Price unavailable
Pan Head Screw
18
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98507-05020-00
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
95617-05100-00
19
Yamaha Motors
95617-05100-0095612-05100-00
Required: 1
NUT, U
Supersedes: 95602-05100-00
Cross Ship
Leaves in 2-5 days
$2.20
$1.87
You save $0.33
More details
20
Required: 1
COLLAR
Price unavailable
GROMMET, WATER TUBE (UPPER)
21
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-11008-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
22
Required: 1
WASHER, PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
