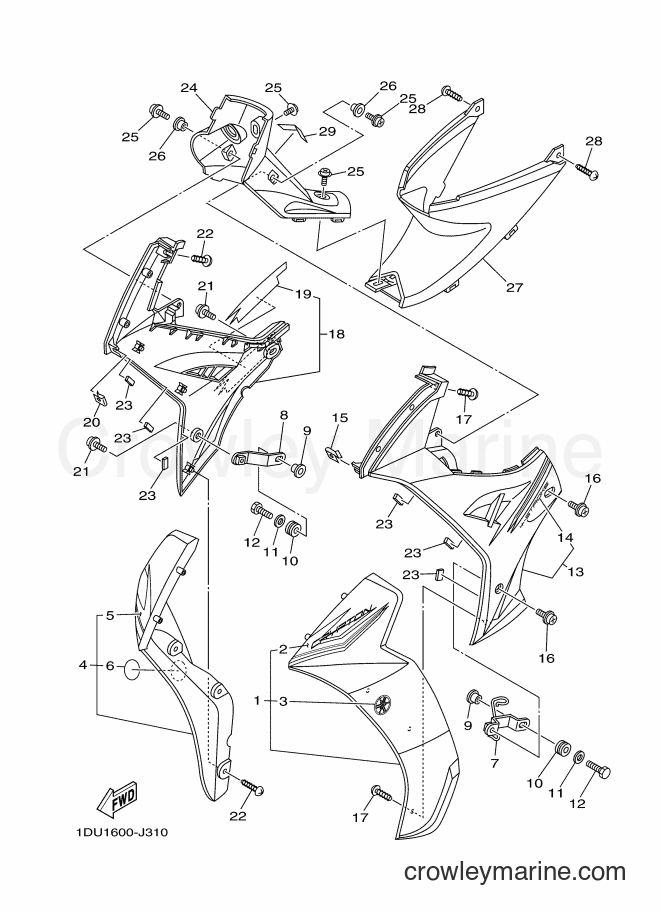

2013 Scooter T110C - T110C (40B6) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110C (40B6) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Required: 1
. GRAPHIC 1
Price unavailable
3
Required: 1
. EMBLEM
Price unavailable
4
Required: 1
LEG SHIELD 2
Price unavailable
5
Required: 1
. GRAPHIC 2
Price unavailable
6
Required: 1
. EMBLEM
Price unavailable
7
Required: 1
STAY 1
Price unavailable
8
Required: 1
STAY 2
Price unavailable
9
Required: 2
COLLAR
Price unavailable
Grommet
10
Yamaha Motors
Grommet90480-13018-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
11
Yamaha Motors
Plate Washer90201-06557-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
BOLT
12
Yamaha Motors
BOLT97011-06020-00
Required: 2
BOLT
Supersedes: 97002-06020-00
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details
13
Required: 1
COVER, UNDER
Price unavailable
14
Required: 1
. GRAPHIC 5
Price unavailable
15
Required: 1
NUT, SPRING
Price unavailable
16
Required: 2
SCREW, WITH WASHER
Price unavailable
Truss Screw
17
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
18
Required: 1
COVER, UNDER 2
Price unavailable
19
Required: 1
. GRAPHIC 6
Price unavailable
20
Required: 1
NUT, SPRING
Price unavailable
21
Required: 2
SCREW, WITH WASHER
Price unavailable
Truss Screw
22
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
23
Required: 6
DAMPER
Price unavailable
24
Required: 1
COVER 1
Price unavailable
25
Required: 4
SCREW, WITH WASHER
Price unavailable
26
Required: 2
COLLAR
Price unavailable
27
Required: 1
COVER 2
Price unavailable
Tapping Screw
28
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
29
Required: 1
LABEL, WARNING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
