2013 Scooter T110C - T110C (40B6) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

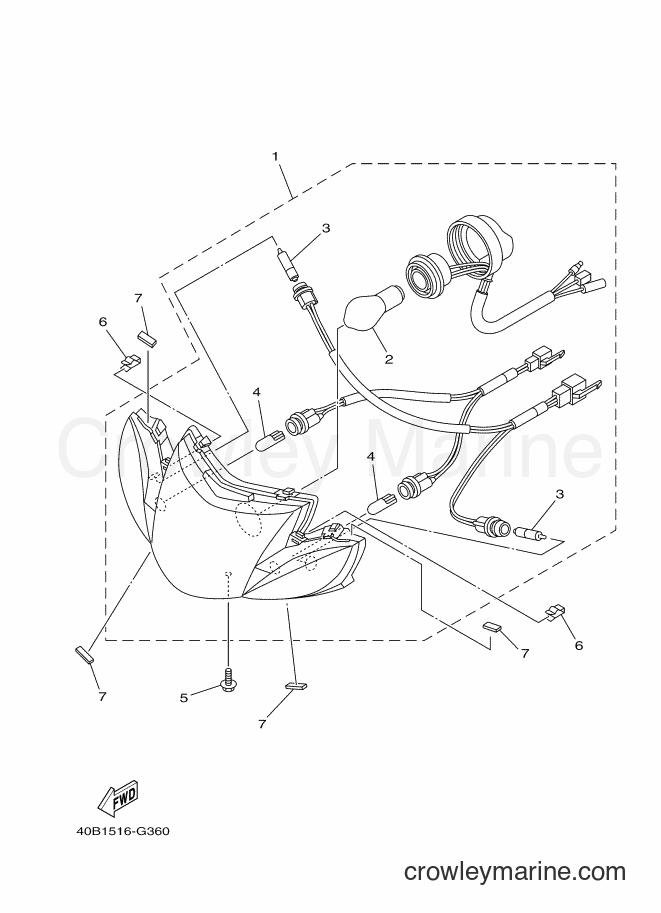

Yamaha Motors T110C (40B6) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT ASSY
Price unavailable
2
Required: 1
. BULB, HEADLIGHT (12V 35/35W)
Price unavailable
3
Required: 2
. BULB, FLASHER (12V 21W)
Price unavailable
4
Required: 2
. BULB, PILOT LIGHT (12V W3W)
Price unavailable
Bolt with Washer
5
Yamaha Motors
Bolt with Washer90119-05805-00
Required: 1
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$1.05
$0.89
You save $0.16
More details
6
Required: 2
CLIP
Price unavailable
7
Required: 4
DAMPER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
