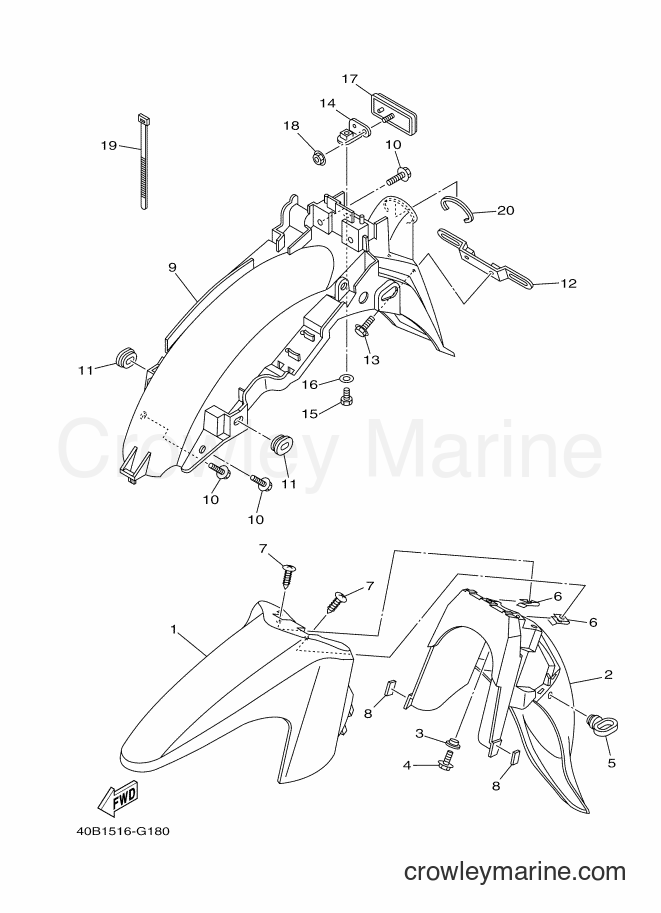

2013 Scooter T110C - T110C (40B6) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110C (40B6) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 1
FENDER, FRONT 2
Price unavailable
COLLAR
3
Yamaha Motors
COLLAR90387-06857-00
Required: 3
COLLAR
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details
4
Required: 3
BOLT, WITH WASHER
Price unavailable
5
Required: 1
HOLDER, CABLE
Price unavailable
6
Required: 2
NUT, SPRING
Price unavailable
Truss Screw
7
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50014-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
8
Required: 2
DAMPER
Price unavailable
9
Required: 1
FENDER, REAR
Price unavailable
10
Required: 4
BOLT, WITH WASHER
Price unavailable
Grommet
11
Yamaha Motors
Grommet90480-01559-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
12
Required: 1
BRACKET, LICENSE
Price unavailable
13
Required: 2
BOLT, WITH WASHER
Price unavailable
14
Required: 1
BRACKET, REFLECTOR 1
Price unavailable
BOLT
15
Yamaha Motors
BOLT97011-05012-00
Required: 1
BOLT
Supersedes: 97002-05012-00
Cross Ship
Leaves in 2-5 days
$1.35
$1.15
You save $0.20
More details
17
Required: 1
REAR REFLECTOR ASSY
Price unavailable
Flange Nut
18
Yamaha Motors
Flange Nut95702-05500-00
Required: 1
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details
19
Required: 1
BAND, SWITCH CORD
Price unavailable
20
Required: 1
DAMPER, PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
