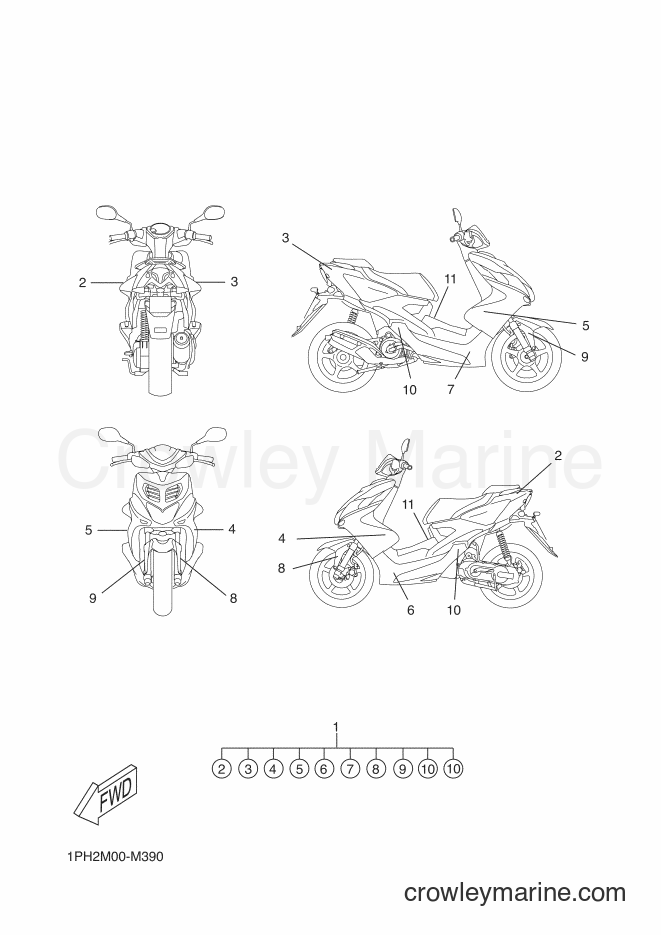

2013 Scooter NS50 - NS50 (1PH2) [020] GRAPHIC & EMBLEM diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors NS50 (1PH2) [020] - GRAPHIC & EMBLEM
Change View:
1
Required: 1
GRAPHIC MASTER SHEET 1
Price unavailable
2
Required: 1
. GRAPHIC
Price unavailable
3
Required: 1
. GRAPHIC
Price unavailable
4
Required: 1
. GRAPHIC, 15
Price unavailable
5
Required: 1
. GRAPHIC, 16
Price unavailable
6
Required: 1
. GRAPHIC, UNDER COVER 1
Price unavailable
7
Required: 1
. GRAPHIC, UNDER COVER 2
Price unavailable
8
Required: 1
. GRAPHIC 1
Price unavailable
9
Required: 1
. GRAPHIC 2
Price unavailable
10
Required: 2
. EMBLEM 1
Price unavailable
11
Required: 1
EMBLEM 3D
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
