2013 Scooter NS50 - NS50 (1PH2) [010] FRONT BRAKE CALIPER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

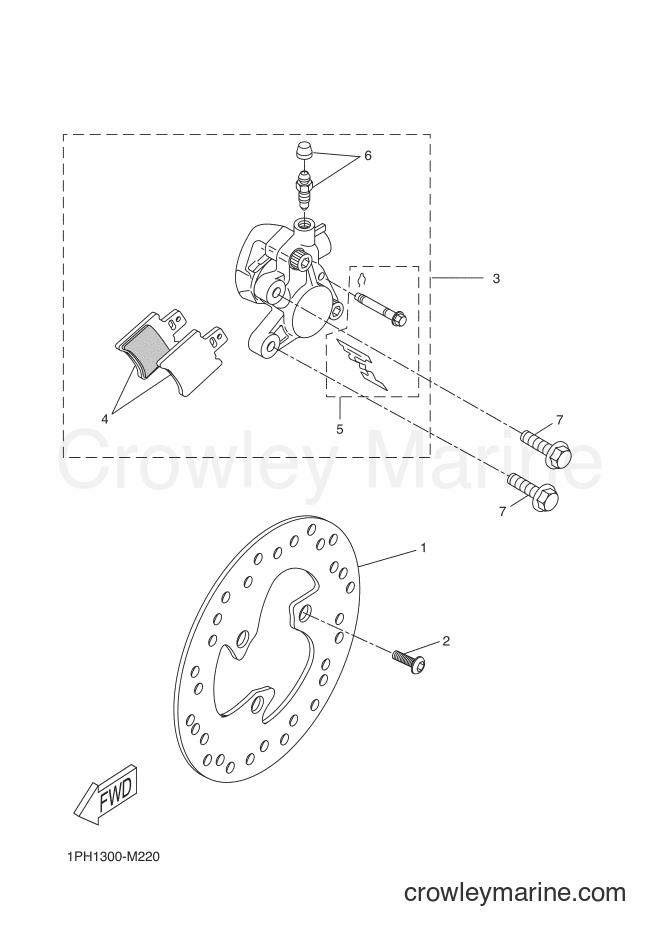

Yamaha Motors NS50 (1PH2) [010] - FRONT BRAKE CALIPER
Change View:
1
Required: 1
DISC, BRAKE (LEFT)
Price unavailable
BOLT
2
Yamaha Motors
BOLT90111-10X00-00
Required: 3
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$12.99
$11.04
You save $1.95
More details
3
Required: 1
CALIPER ASSY (LEFT)
Price unavailable
4
Required: 1
. BRAKE PAD KIT
Price unavailable
5
Required: 1
. PIN, PAD
Price unavailable
6
Required: 1
. BLEED SCREW KIT
Price unavailable
Washer Based Bolt
7
Yamaha Motors
Washer Based Bolt90105-08X00-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.45
$2.08
You save $0.37
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
