All diagrams for this model

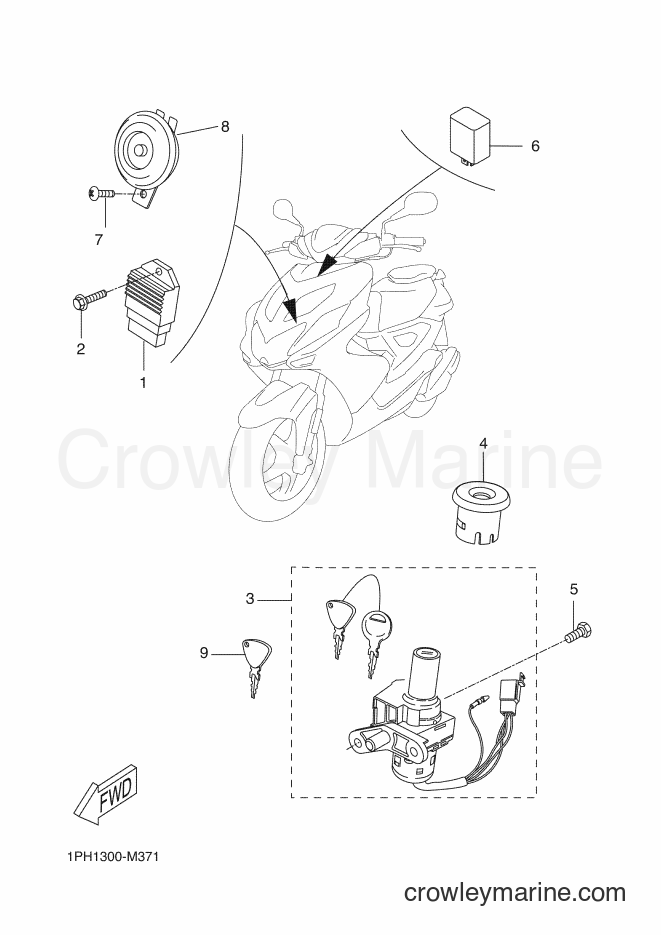

2013 Scooter NS50 - NS50 (1PH1) [080] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors NS50 (1PH1) [080] - ELECTRICAL 1
Change View:
1
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
Flange Bolt
2
Yamaha Motors
Flange Bolt95022-06016-00
Required: 1
BOLT, FLANGE
Supersedes: 9502L-06016-00
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
3
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
4
Required: 1
CAP, SWITCH
Price unavailable
BOLT
5
Yamaha Motors
BOLT90109-06851-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
6
Required: 1
FLASHER RELAY ASSY
Price unavailable
95817-06010-00
7
Yamaha Motors
95817-06010-0095812-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
8
Required: 1
HORN
Price unavailable
9
Required: 1
BLANK KEY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
