All diagrams for this model

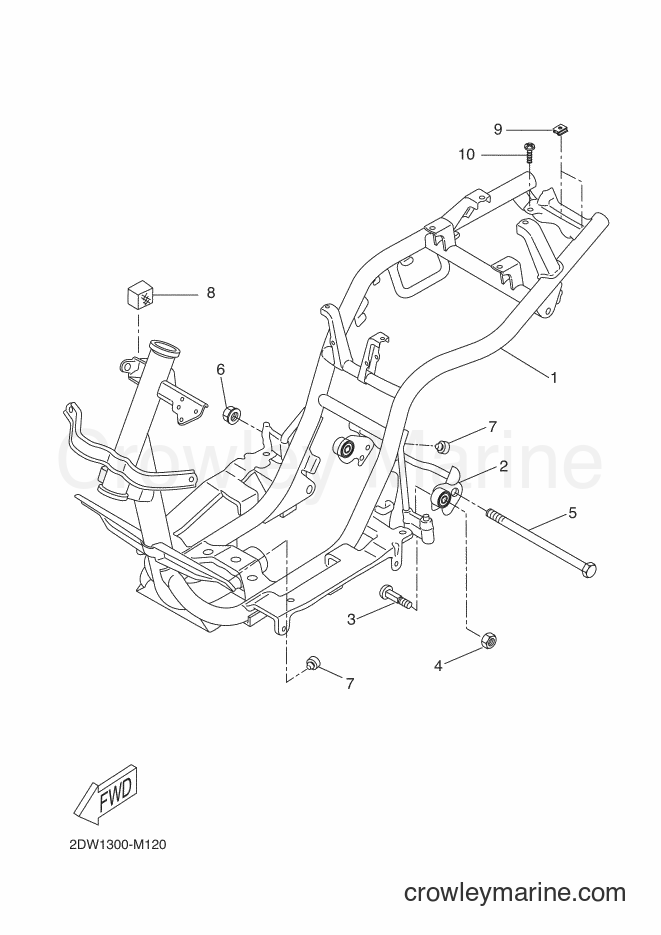

2013 Scooter CW50E - CW50E (2DW2) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50E (2DW2) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
ENGINE BRACKET COMP.
Price unavailable
Engine Mounting Bolt
3
Yamaha Motors
Engine Mounting Bolt2T4-21481-01-00
Required: 2
BOLT, ENGINE MOUNTING 1
Cross Ship
Leaves in 2-5 days
$3.60
$3.15
You save $0.45
More details
NUT
4
Yamaha Motors
NUT95617-10100-00
Required: 2
NUT, U
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Washer Based Bolt
5
Yamaha Motors
Washer Based Bolt90105-10063-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Seat Pad
7
Yamaha Motors
Seat Pad3VL-F4741-10-00
Required: 4
PAD, SEAT
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
8
Required: 1
DAMPER, LOCATING 1
Price unavailable
Spring Nut
9
Yamaha Motors
Spring Nut90183-06X00-00
Required: 2
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
10
Required: 2
SCREW, TAPPING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
