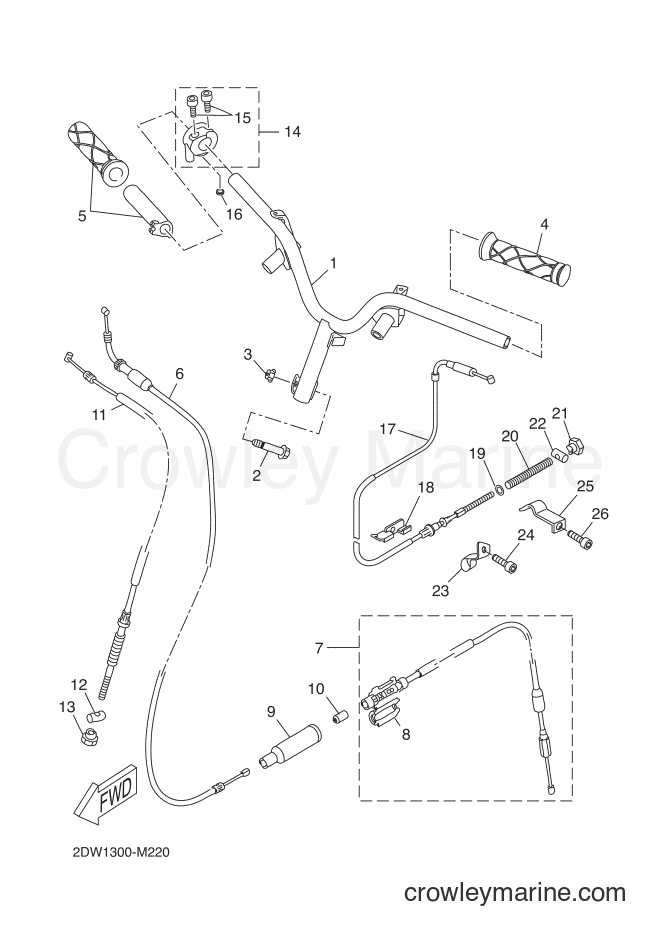

2013 Scooter CW50E - CW50E (2DW1) [070] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50E (2DW1) [070] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE COMP.
Price unavailable
Washer Based Bolt
2
Yamaha Motors
Washer Based Bolt90105-10036-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Grip (Left)
4
Yamaha Motors
Grip (Left)4VU-F6241-20-00
Required: 1
GRIP
Cross Ship
Leaves in 2-5 days
$18.99
$16.14
You save $2.85
More details
5
Required: 1
GRIP ASSY
Price unavailable
6
Required: 1
CABLE, THROTTLE 1
Price unavailable
7
Required: 1
CABLE, THROTTLE 2
Price unavailable
8
Required: 1
. CONNECTOR, CABLE
Price unavailable
Rubber Cap
9
Yamaha Motors
Rubber Cap3WG-F6329-00-00
Required: 1
CAP, RUBBER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Cable Connector Cap
10
Yamaha Motors
Cable Connector Cap3VL-F6262-00-00
Required: 1
CAP, CABLE CONNECTOR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
11
Required: 1
WIRE, BRAKE 1
Price unavailable
Special Shape Nut
13
Yamaha Motors
Special Shape Nut90179-06411-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
14
Required: 1
BODY, THROTTLE
Price unavailable
15
Required: 2
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
Plug
16
Yamaha Motors
Plug90338-07043-00
Required: 1
PLUG
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
17
Required: 1
CABLE, BRAKE
Price unavailable
18
Required: 1
GUIDE, CABLE 1
Price unavailable
Plate Washer
19
Yamaha Motors
Plate Washer90202-08175-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Compression Spring
20
Yamaha Motors
Compression Spring90501-12X00-00
Required: 1
SPRING, COMPRESSION
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Special Shape Nut
21
Yamaha Motors
Special Shape Nut90179-06411-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
23
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
24
Required: 1
BOLT, HEXAGON SOCKET HEAD
Price unavailable
25
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
26
Required: 1
BOLT, HEXAGON SOCKET HEAD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
