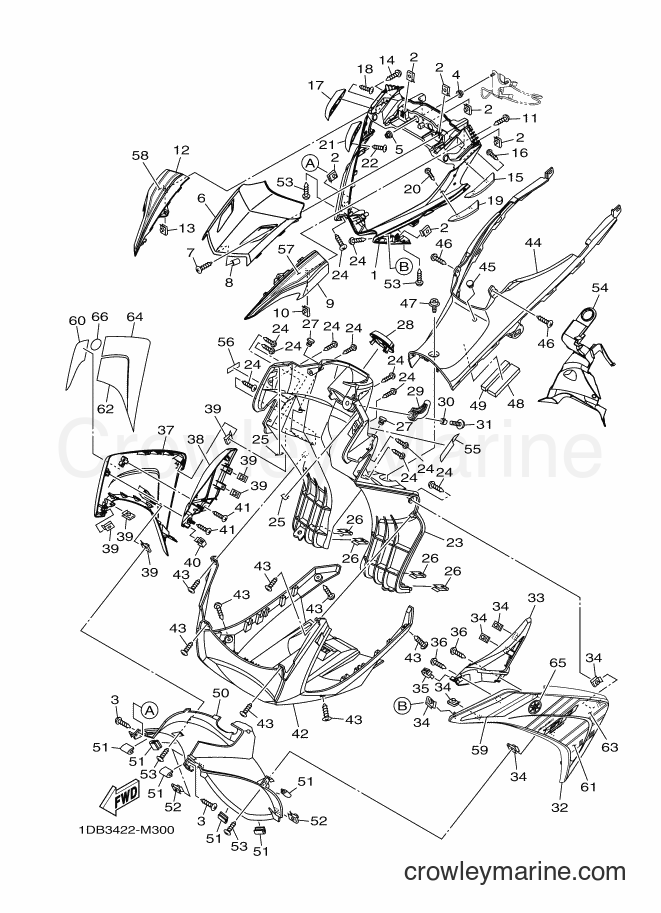

2013 Scooter AT125FC - AT125FC (1DB5) [010] LEG SHIELD diagram
![Yamaha Motors AT125FC (1DB5) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/2MxeG3fI.png)
1
Required: 1
LEG SHIELD 1
Price unavailable
-50%
2
Yamaha Motors
Spring Nut90183-05042-00
Required: 6
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
3
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
$2.00
You save $0.35
$5.94
You save $1.05
6
Required: 1
COVER, HEADLIGHT
Price unavailable
7
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
8
Required: 1
DAMPER
Price unavailable
9
Required: 1
COVER, HEADLIGHT 1
Price unavailable
11
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
12
Required: 1
COVER, HEADLIGHT 2
Price unavailable
-50%
13
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
14
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
15
Required: 1
FIN 1
Price unavailable
16
Yamaha Motors
Tapping Screw97707-40008-00
Required: 2
SCREW, TAPPING
$0.55
You save $0.00
17
Required: 1
FIN 2
Price unavailable
18
Yamaha Motors
Tapping Screw97707-40008-00
Required: 2
SCREW, TAPPING
$0.55
You save $0.00
19
Required: 1
FIN, 3
Price unavailable
20
Yamaha Motors
Tapping Screw97707-40008-00
Required: 2
SCREW, TAPPING
$0.55
You save $0.00
21
Required: 1
FIN, 4
Price unavailable
22
Yamaha Motors
Tapping Screw97707-40008-00
Required: 2
SCREW, TAPPING
$0.55
You save $0.00
23
Required: 1
LEG SHIELD ASSY
Price unavailable
24
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 12
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
25
Required: 2
DAMPER
Price unavailable
-50%
26
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
27
Required: 2
PLUG
Price unavailable
28
Required: 1
COVER
Price unavailable
29
Required: 1
HOOK 1
Price unavailable
30
Required: 1
COLLAR
Price unavailable
31
Required: 1
BOLT,HEX. SOCKET BUTTON
Price unavailable
32
Required: 1
PANEL 1
Price unavailable
33
Required: 1
COVER, FLASHER 1
Price unavailable
-50%
34
Yamaha Motors
Spring Nut90183-05042-00
Required: 6
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
35
Required: 1
HOOK
Price unavailable
36
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
37
Required: 1
PANEL 2
Price unavailable
38
Required: 1
COVER, FLASHER 2
Price unavailable
-50%
39
Yamaha Motors
Spring Nut90183-05042-00
Required: 6
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
40
Required: 1
HOOK
Price unavailable
41
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
42
Required: 1
COVER, UNDER
Price unavailable
43
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 8
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
44
Required: 1
COVER 2 (0033,YB)
Price unavailable
45
Required: 1
PLUG, BLIND
Price unavailable
46
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
47
Required: 1
SCREW, WITH WASHER
Price unavailable
48
Required: 1
DAMPER, PLATE
Price unavailable
49
Required: 1
DAMPER, PLATE
Price unavailable
50
Required: 1
FENDER, INNER
Price unavailable
51
Required: 6
DAMPER, PLATE
Price unavailable
-50%
52
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
53
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
54
Required: 1
FLAP, FRONT FENDER
Price unavailable
55
Required: 1
LABEL, CAUTION
Price unavailable
56
Required: 1
LABEL, NOTICE 1
Price unavailable
57
Required: 1
GRAPHIC 1
Price unavailable
58
Required: 1
GRAPHIC 2
Price unavailable
59
Required: 1
GRAPHIC 3
Price unavailable
60
Required: 1
GRAPHIC 4
Price unavailable
61
Required: 1
GRAPHIC 19
Price unavailable
62
Required: 1
GRAPHIC 20
Price unavailable
63
Required: 1
GRAPHIC 7
Price unavailable
64
Required: 1
GRAPHIC 8
Price unavailable
65
Required: 1
TUNING FORK MARK
Price unavailable
66
Required: 1
TUNING FORK MARK
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
