2013 Scooter AL125FC - AL125FC (1LB2) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

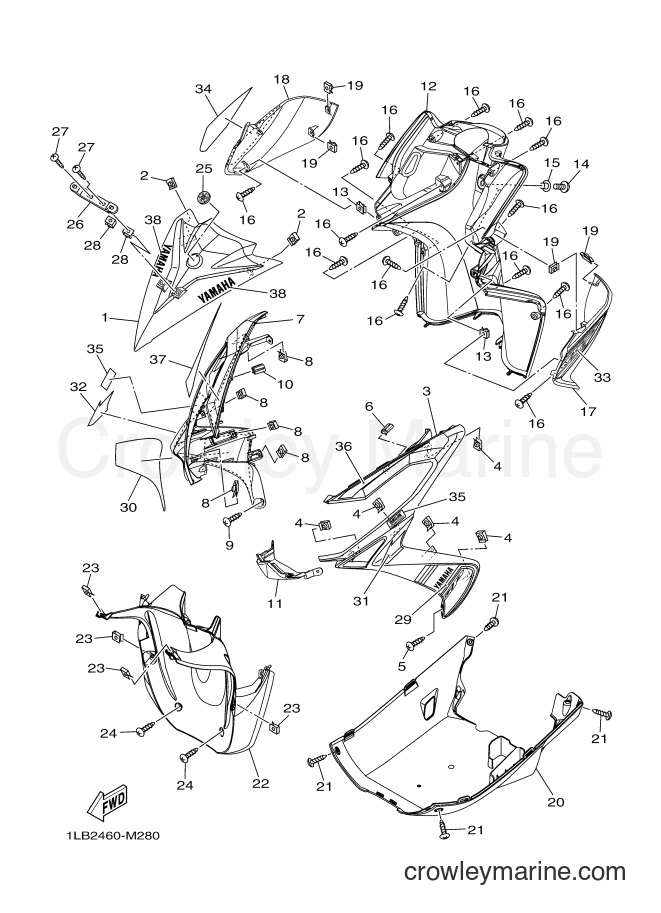

Yamaha Motors AL125FC (1LB2) [010] - LEG SHIELD
Change View:
1
Required: 1
PANEL, FRONT
Price unavailable
3
Required: 1
PANEL 1
Price unavailable
Truss Screw
5
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
6
Required: 1
CAP, RUBBER
Price unavailable
7
Required: 1
PANEL 2
Price unavailable
Truss Screw
9
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
10
Required: 1
CAP, RUBBER
Price unavailable
11
Required: 1
PANEL, FRONT 2
Price unavailable
12
Required: 1
LEG SHIELD 2
Price unavailable
BOLT (44D1)
14
Yamaha Motors
BOLT (44D1)90111-06839-00
Required: 1
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$0.50
$0.42
You save $0.08
More details
15
Required: 1
COLLAR
Price unavailable
Truss Screw
16
Yamaha Motors
Truss Screw97707-50014-00
Required: 14
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
17
Required: 1
PANEL, INNER 1
Price unavailable
18
Required: 1
PANEL, INNER 2
Price unavailable
20
Required: 1
COVER, UNDER
Price unavailable
Truss Screw
21
Yamaha Motors
Truss Screw97707-50014-00
Required: 4
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
22
Required: 1
FENDER, INNER
Price unavailable
Truss Screw
24
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
25
Required: 1
EMBLEM
Price unavailable
26
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
Truss Screw
27
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
29
Required: 1
GRAPHIC 1
Price unavailable
30
Required: 1
GRAPHIC 2
Price unavailable
31
Required: 1
GRAPHIC 3
Price unavailable
32
Required: 1
GRAPHIC 4
Price unavailable
33
Required: 1
GRAPHIC 5
Price unavailable
34
Required: 1
GRAPHIC 6
Price unavailable
35
Required: 2
GRAPHIC 7
Price unavailable
36
Required: 1
GRAPHIC 1
Price unavailable
37
Required: 1
GRAPHIC 2
Price unavailable
38
Required: 2
EMBLEM, YAMAHA
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
